Pit Boss TAILGATER - Electrical Wire Diagram; Power Requirements and Wiring Diagram

ENGLISH
23
  

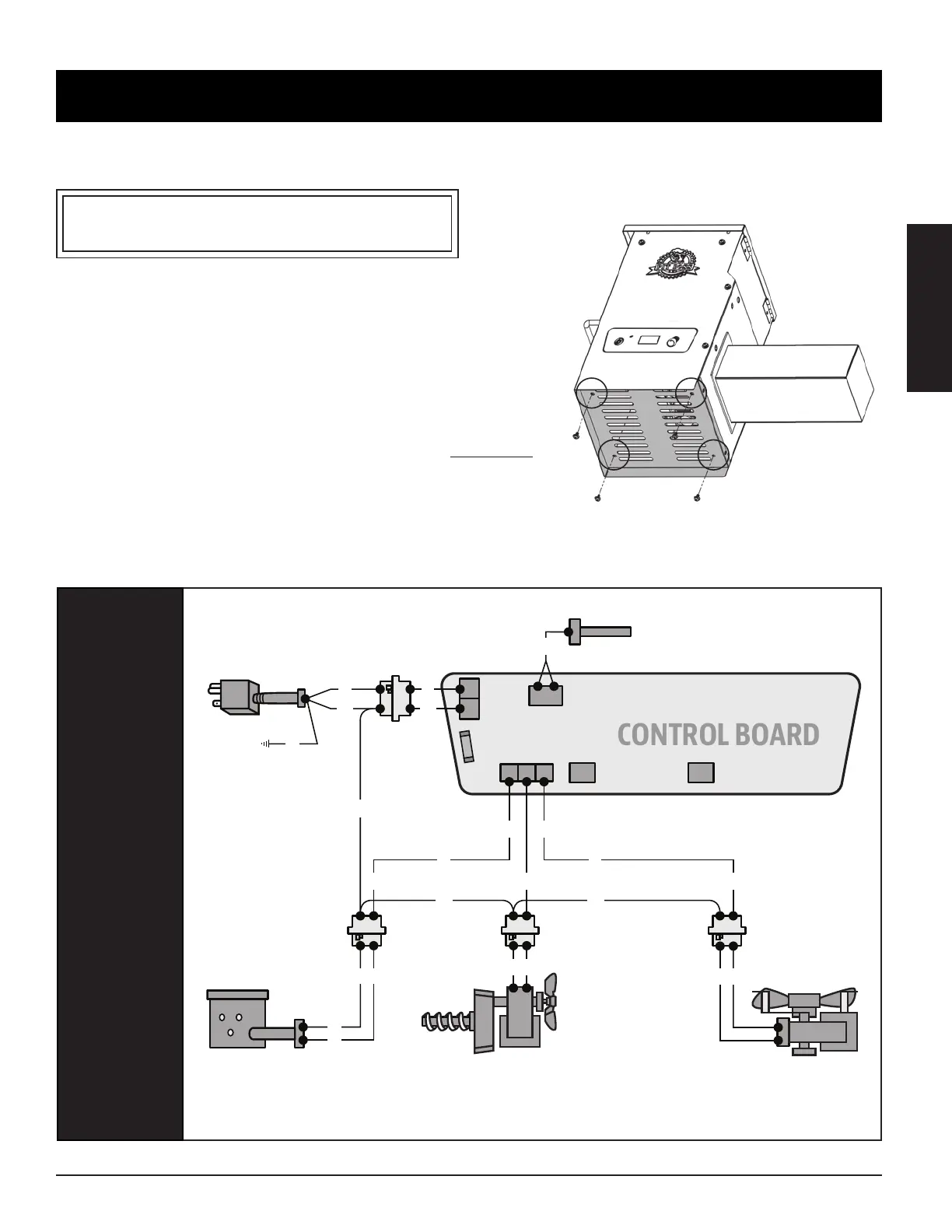

The Digital Control Board system is an intricate and valuable piece of technology. For protection from power surges and electrical
shorts, consult the wire diagram below to ensure your power source is sufficient for the operation of the unit.
PB – ELECTRIC REQUIREMENTS
230V, 3.1AMP, 50HZ, 250W, 3-PRONG GROUNDED PLUG
: Electrical components, passed by product safety testing and certification services, comply
with a testing tolerance of ± 5-10 percent.
LOCATE AND REMOVE
THE FOUR SCREWS
OF ACCESS PANEL ON
UNDERSIDE OF UNIT
FUEL INPUT
RATING:
1.12 KG/H
(2.48 LB/H)
INDEX
W : WHITE
Y : YELLOW
P : PURPLE
R : RED
K : BLACK
G : GREEN
P
P
R
Y
Y
YP
K
K
W
G
W
W
W
R R
WW
W
W
YY
K
W
IGNITER ASSEMBLY /
HD CARTRIDGE HEATER
200W, 230V, 2.6 AMP
9.5MM X 127MM (0.375” X 5.000”)
FIRE POT
DRAFT FAN
230V, 50/60HZ,
0.1 AMP, 1 PHASE
GROUNDED
POWER CORD
AUGER MOTOR
& FEED SYSTEM
230V, 50/60HZ,
0.22 AMP, 2 RPM MOTOR
GROUND
GRILL
PROBE
TEMPERATURE PROBE
MOLEX CONNECTORS
FAST-BLOW FUSE
5 AMP
CONTROL BOARD
