INSTALLATION & OPERATIONAL SELV MANUAL
25 L20-406 Rev 5 (3/14)

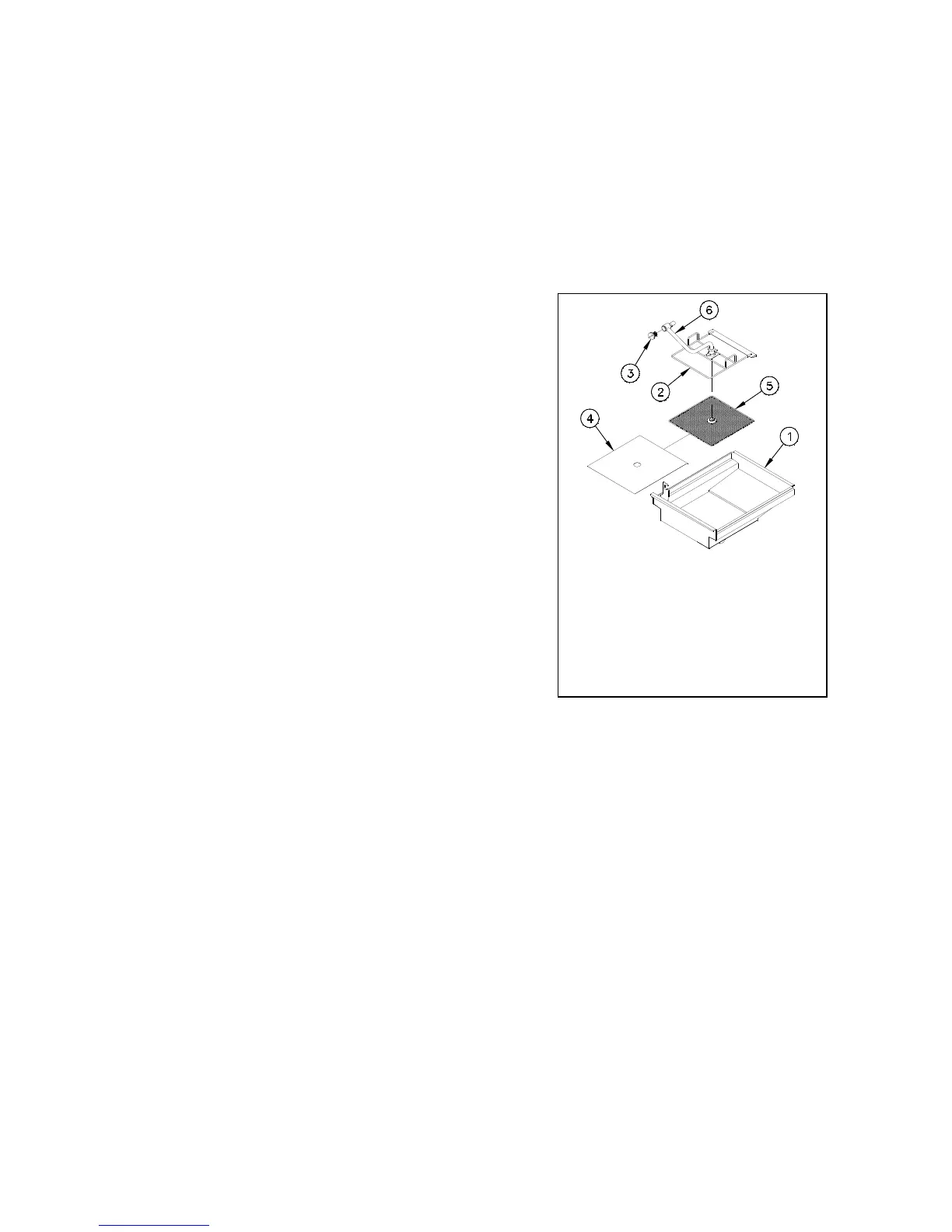

1. Filter Pan
2. Filter Envelope Clip
3. Filter Strainer Cap
4. Filter Envelope
5. Filter Screen
6. Filter Pickup Tube
Refer to the following procedure to replace the filter media if the appliance is equipped with a filter
drawer.
1. Detach the pickup tube from the filter pickup assembly by unscrewing it (counterclockwise),
at the knurled fitting, from the threaded fitting on the filter screen.
2. Slide off the filter paper clip and remove used filter paper from filter screen. Replace with new
filter paper, ensuring that the hole in the paper is on the top, so that threaded fitting in filter
screen protrudes through it.
3. Fold filter paper to the underside of the filter
screen and replace filter paper clip.
4. Re-attach filter pickup tube to the filter screen by
screwing it (clockwise) into the threaded fitting in
filter screen.
5. Reinstall the filter pickup assembly into the filter
system by placing the newly covered screen
portion of the assembly into the filter pan and
connecting the quick disconnect on the filter
pickup assembly into white donut fitting on the
left-hand side of the appliance. Ensure that it
snaps tightly and securely into donut fitting.
Lift BLUE drain valve handle up.
Fill fryer
To Next Page
