IMPORTANT: Before attaching the right gripper gear arm to the standard servo, attach the standard
servo to the gripper plate. Then, connect the standard servo and position the servo motor to the neutral position for
proper gear position alignment as shown in the following steps. Instructions on assembly of TETRIX PRIME parts can
also be found at TETRIXrobotics.com.

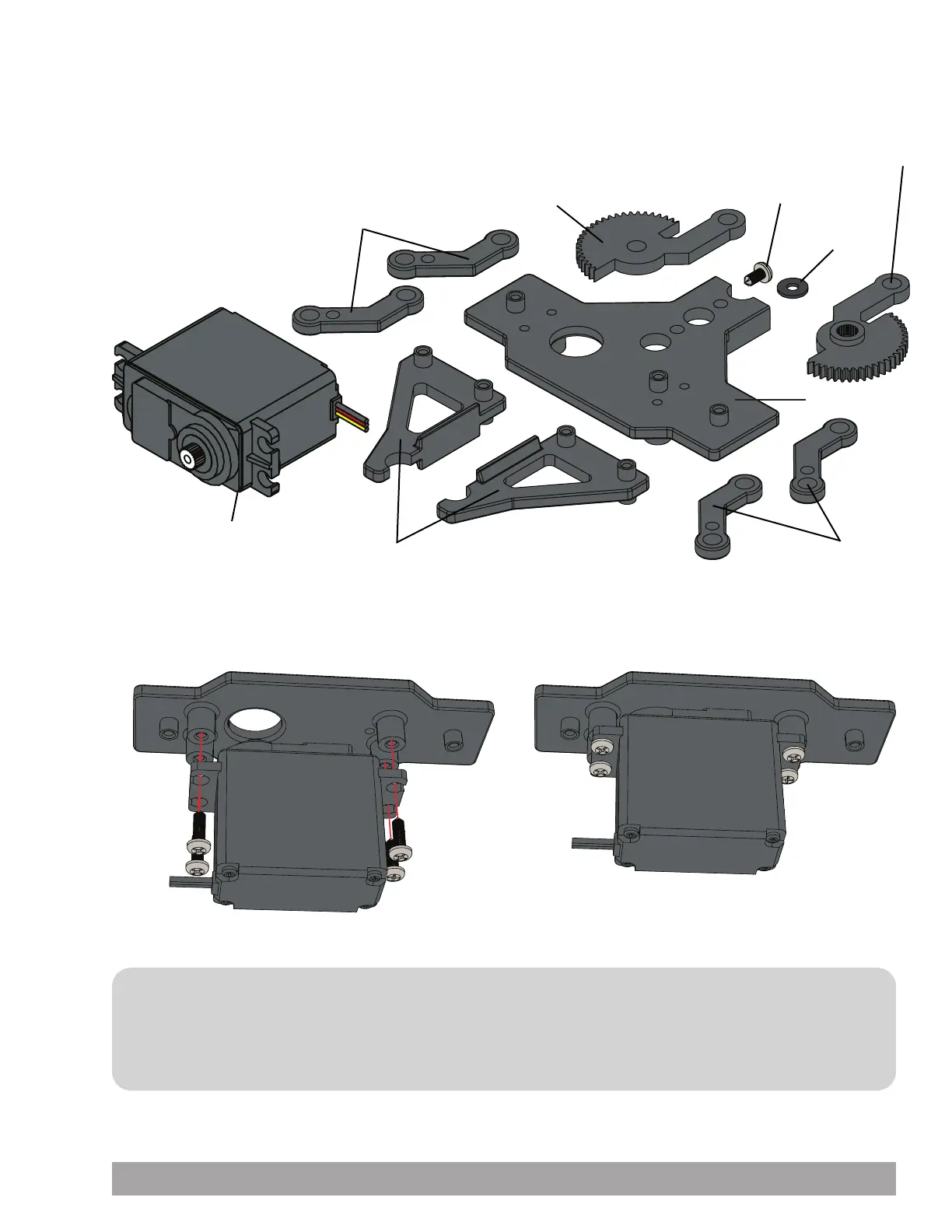

Gripper Assembly
The gripper kit is included with the TETRIX PRIME Programmable Robotics Set
but is shown here for reference.
Step 1 Step 2
Gripper Pivot Arm
Gripper Pivot Arm
Right Gripper
Gear Arm
Left Gripper
Gear Arm
Gripper Plate
Gripper Pincer
Standard Servo
12x
Pivot Washer
11x
Self-Tapping
Screw
Building and Coding the PULSE CodeeBot 57
