8.2 Manual tuning
Manual procedure allows the user greater fl exibility to decide
when to update PID algorithm parameters. It can be enabled
selecting Man on par. 27
tun
.
Tuning launch: press
!, display shows
t.o f
, pressing § it
visualizes process value and
tun
(alternately) up to procedure
completion (it can take some minutes). To cancel procedure
press
! and after ¶ to select
t.o f
.
8.3 Automatic tuning
Automatic tuning activates whenever the controller is switched
on or when the setpoint is modifi ed to a value over 35%.
It can
be enabled selecting
aut
on par. 27
tun
.
To exit Tuning and keep P.I.D. values unchanged, press
!
then ¶ to select
t.o f
.

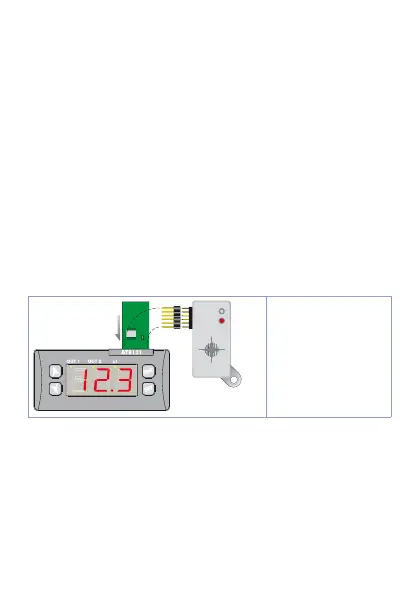

8.4 Memory card (optional)
U1
C1
CN1
1 6
Memory Card (optional)
with battery/con batteria
Cod. 2100.30.003
Memory Card (optional)
Cod. 2100.30.005
CN1
1 6
PIXSYS
Parameters and
setpoint values can
be duplicated from
one controller to
another using the
Memory card.
2 modes are available:
• With the controller connected to the power supply:
Insert the memory card when the controller is off . At
starting display shows (only if the correct values are
saved in the memory card). Pressing
§ display shows
m -Ld
. Confi rming with !, the controller loads the new
data and starts again. Pressing
¶ display shows
m-n o
and
the controller starts keeping values unchanged.
