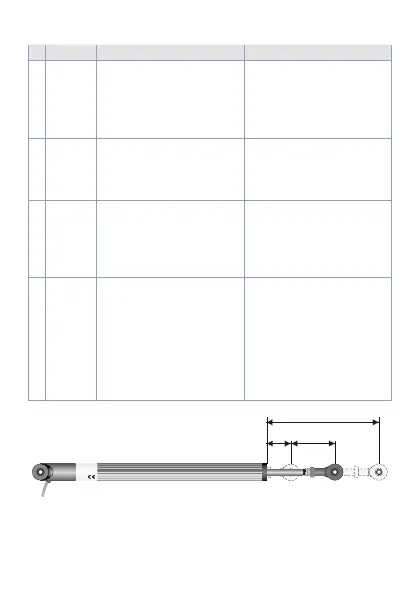

22 - ATR121 - User manual
For the calibration procedure refer to the following table:
Press Display Do
1
!
Exit parameters
confi guration.
Device visualizes
alternately process
and
La t
Place the sensor on
minimum operating
value (associated with
Lo. n
)
2
¶
Set the value on
minimum.
Display shows
Lo 
Place the sensor on
maximum operating
value (associated with
Hi. n
)
3
§
Set the value to
maximum.
The display shows
Hi G
To exit standard
procedure press . For
“virtual zero” settings
place the sensor on the
zero point.
4
|
Set the virtual zero
value. Display shows
ui r
N.B.: For selection of
u.0s
the procedure
in point 4 should be
followed on each
re-activation.
To exit procedure press
!.
Max
Min Zero
