EN 18

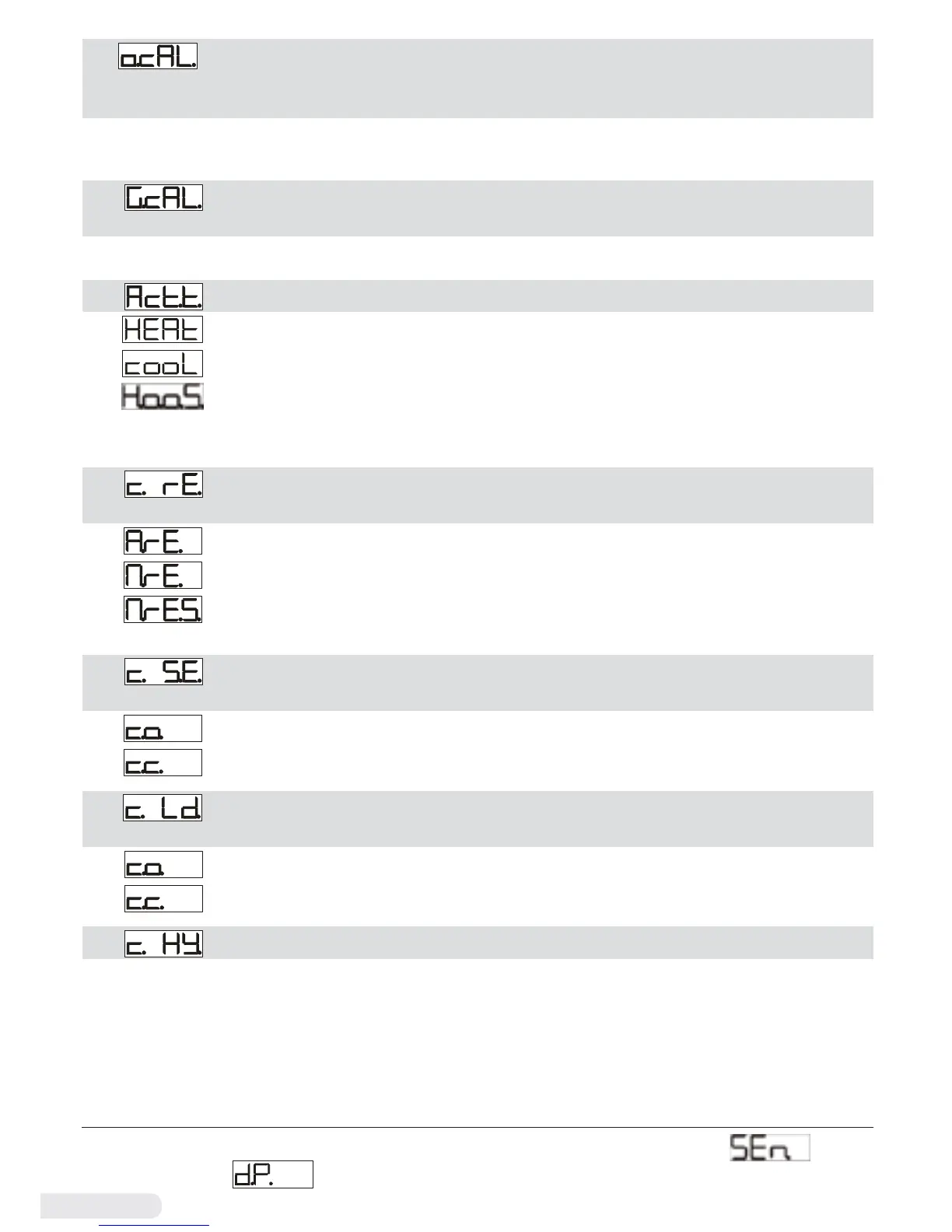

6 Offset Calibration: Number that is added / subtracted
to process visualization
(usually correcting the value of environment temperature)
-999…+1000 digit* for linear sensors and potentiometers.
-200.0…+100.0 0 tenths for temperature sensors, Default 0.0.
7 Gain Calibration: Percentage value that is multiplied for the
process value (allows to calibrated the working point)
-99.9%…+100.0% (Default = 0.0)
8 Action type: Regulation type
Heating (N.O.) (Default)
Cooling (N.C.)
Lock command above SPV.
Example: command output disabled when reaching setpoint,
also with P.I.D. value different from 0
9 Command Rearmament: Type of reset for state of
command contact (always automatic in P.I.D. functioning)
Automatic reset (Default)
Manual reset
Manual reset stored
(keeps relay status also after an eventual power failure)
10 Command State Error: State of contact for command
output in case of error
Open contact (Default)
Closed contact
11 Command Led: State of the OUT1 led corresponding to the
relevant contact
ON with open contact
ON with closed contact (Default)
12 Command Hysteresis: Hysteresis in ON/OFF or dead band in P.I.D.
-999…+999 digit* (degrees if temperature), Default: 0.0.
The display of the decimal point depends on the setting of parameter and
the parameter
.
*
To Next Page
