Pixsys ATR 236 - Dimensions and Installation

EN 6

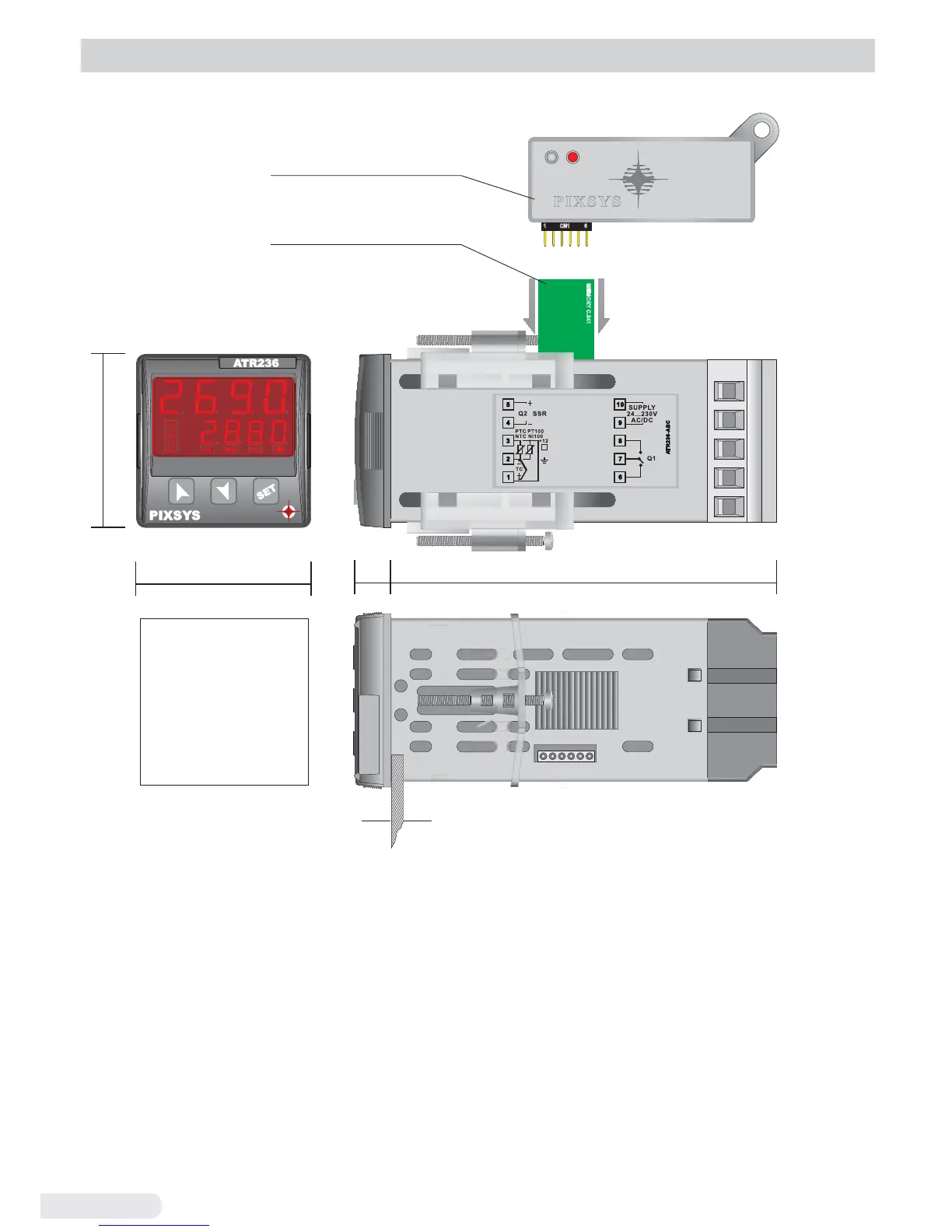

4 Dimensions and Installation
Dima di foratura
46 x 46 mm
Frontal panel cut-out
CN1
1 6
MEMORY C.241
15234
16
Memory Card
A 3
MAN TUN REM
C 1
C 2
A 1
A 2
CN1
1 6
PIXSYS
Memory Card (optional)
Cod. MEMORY C241
Memory Card (optional)
with battery
Cod. MEMORY C243
48 mm
48 mm
Spessore suggerito
2 ÷ 6 mm
Su
gg
ested thickness
107 mm10
42mm inserimento Memory Card
42mm insert Memory Card
