EN 8
5 Electrical wirings

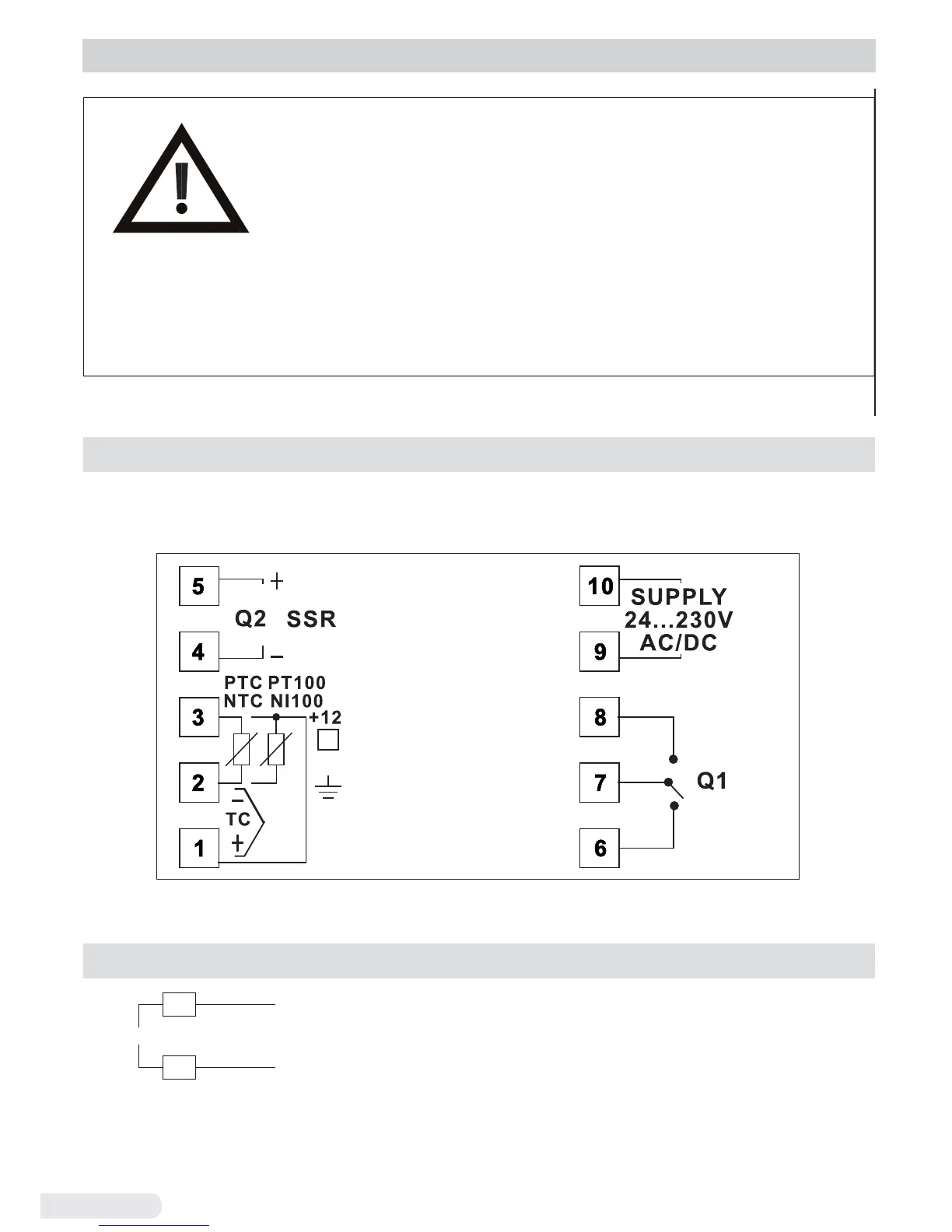

5.1 Wiring diagram
Here below electrical wirings diagram.
Power
10
24...230V
AC/DC
SUPPLY
9
Switching power supply with extended range
24…230 Vac/dc ±15% 50/60 Hz – 4 VA
(with galvanic isolation).
Although this controller has been designed to resist
noises in an industrial environments, please notice
the following safety guidelines:
• Separate control lines from the power wires.
• Avoid the proximity of remote control switches,
electromagnetic meters, powerful engines.
• Avoid the proximity of power groups, especially
those with phase control.
WARNING
