Pixsys ATR 236 - Display and Key Functions

EN 10
Rosso
Red
Bianco
White
Rosso
Red

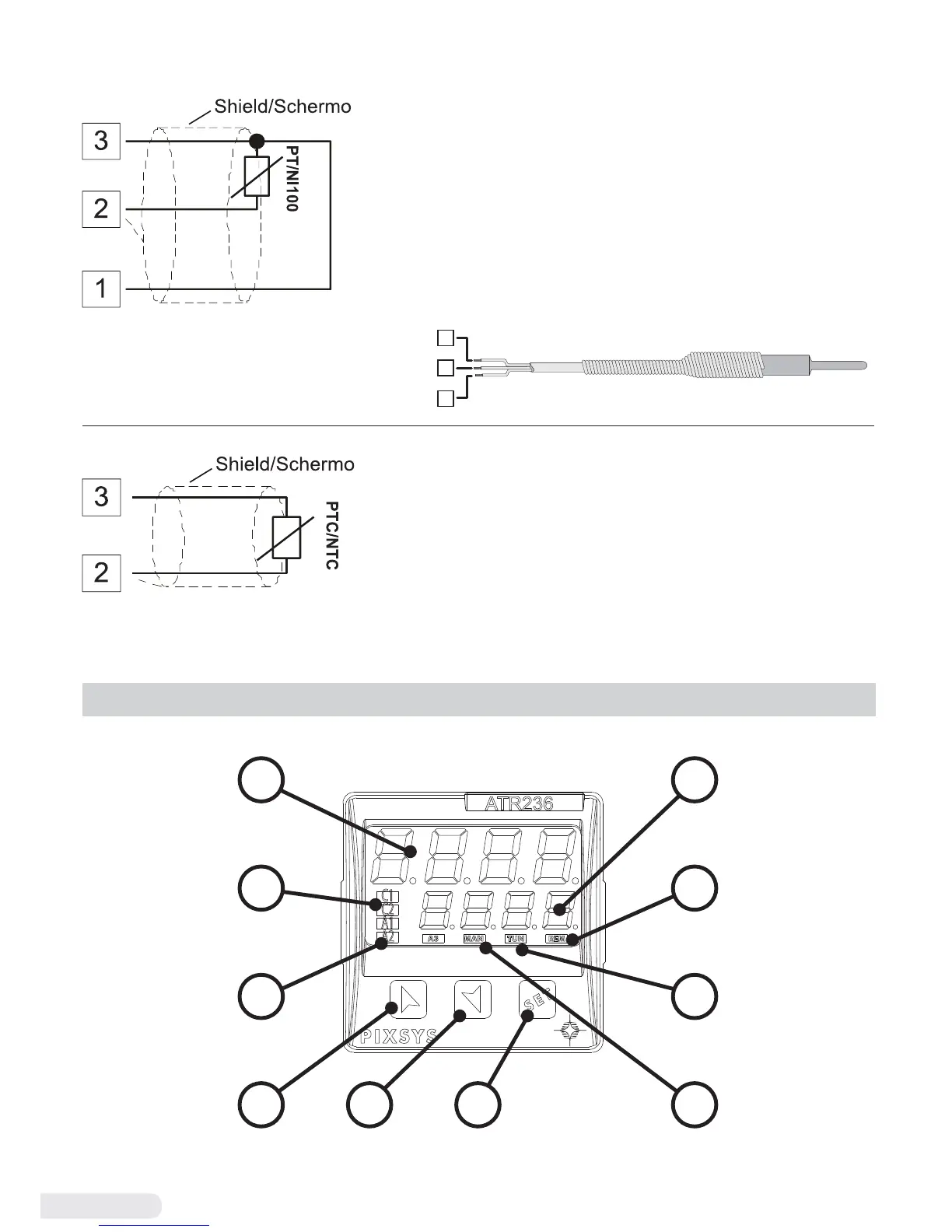

For thermoresistances PT100, NI100.
• For the three-wire connection use wires
with the same section.
• For the two-wire connection short-circuit
terminals 1 and 3.
• When shielded cable is used, it should be
grounded at one side only.
• Select internal jumper JP3 as in the fi gure.
3
2
1
RED
WHITE
RED
For thermoresistances NTC, PTC, PT500,
PT1000 and potentiometers.
• When shielded cable is used, it should be
grounded at one side only to avoid ground
loop currents.
6 Display and Key Functions
A2
A1
C2
C1
ATR236
1
3
4
89
10
5
6
7
2
