9 EN

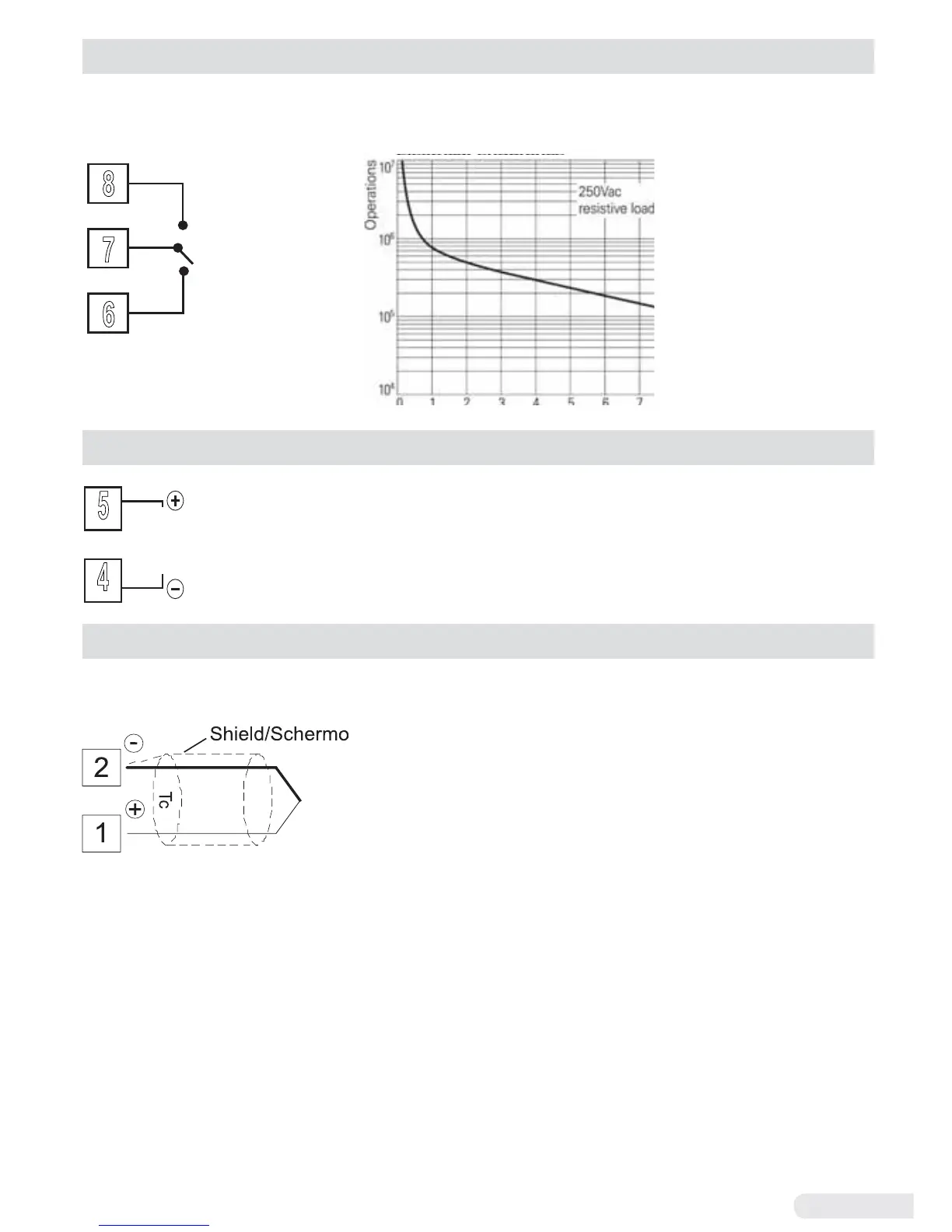

Relay Q1 Output
8
7
6
Q1
Capacity 5 A / 250 V~ for resistive loads.
Electrical endurance:
SSR output
5
4
SSR
SSR command output 12 V / 30 mA.
AN1 Analogue Imput
For thermocouples K, S, R, J.
• Comply with polarity.
• For possible extensions, use a
compensated wire and terminals
suitable for the thermocouples used
(compensated).
• When shielded cable is used, it should be
grounded at one side only.
