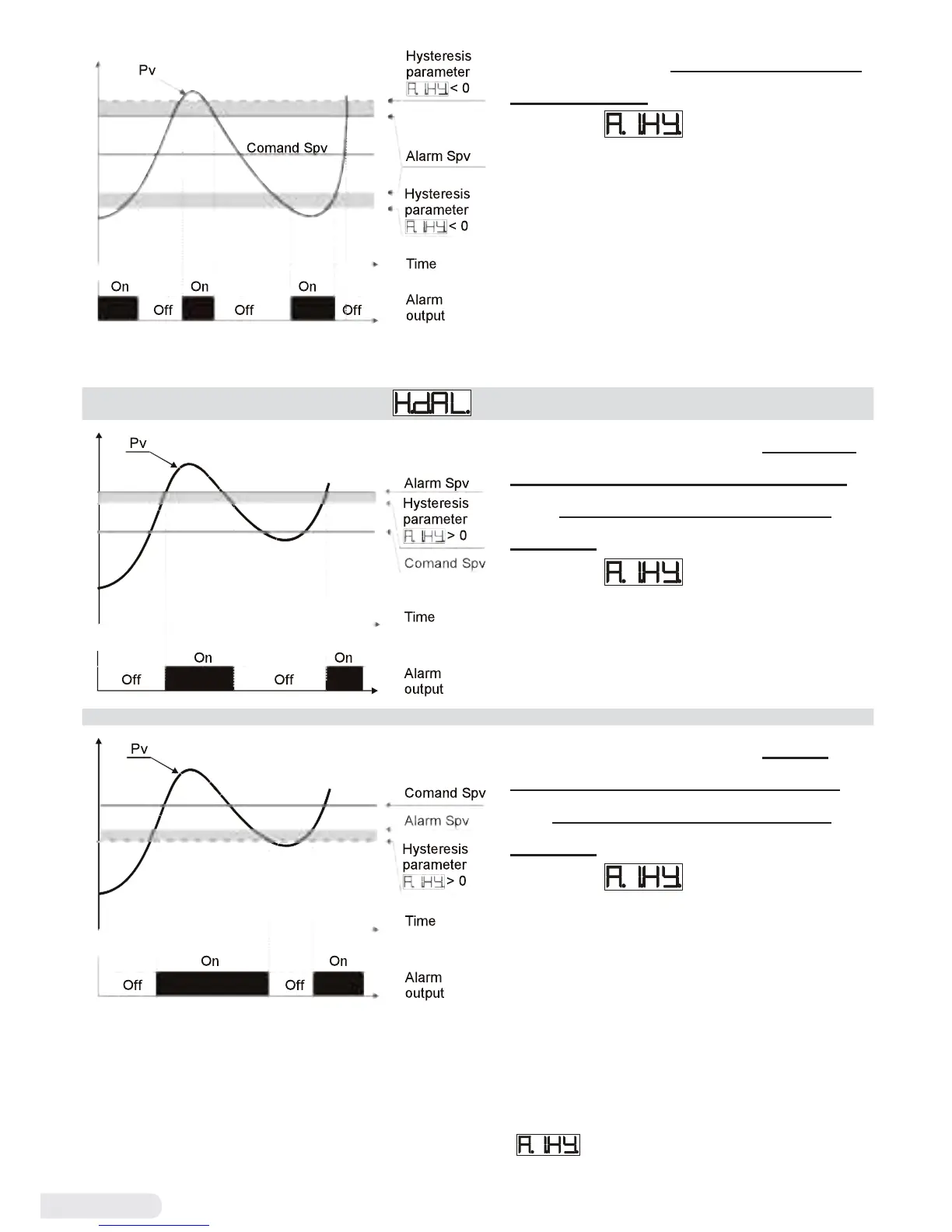

Band alarm hysteresis value
less than “0”
(par. 25
< 0).
Upper Deviation Alarm (
selection)
Upper deviation alarm value of
alarm setpoint greater than “0”
and hysteresis value greater
than “0”
(par. 25
> 0).
N.B.
Upper deviation alarm value
of alarm setpoint less than “0”
and hysteresis value greater
than “0”
(par. 25
> 0).
N.B.
N.B.: With hysteresis value less than “0” (
< 0) the broken line
moves under the alarm setpoint.
