7. Configuration parameters

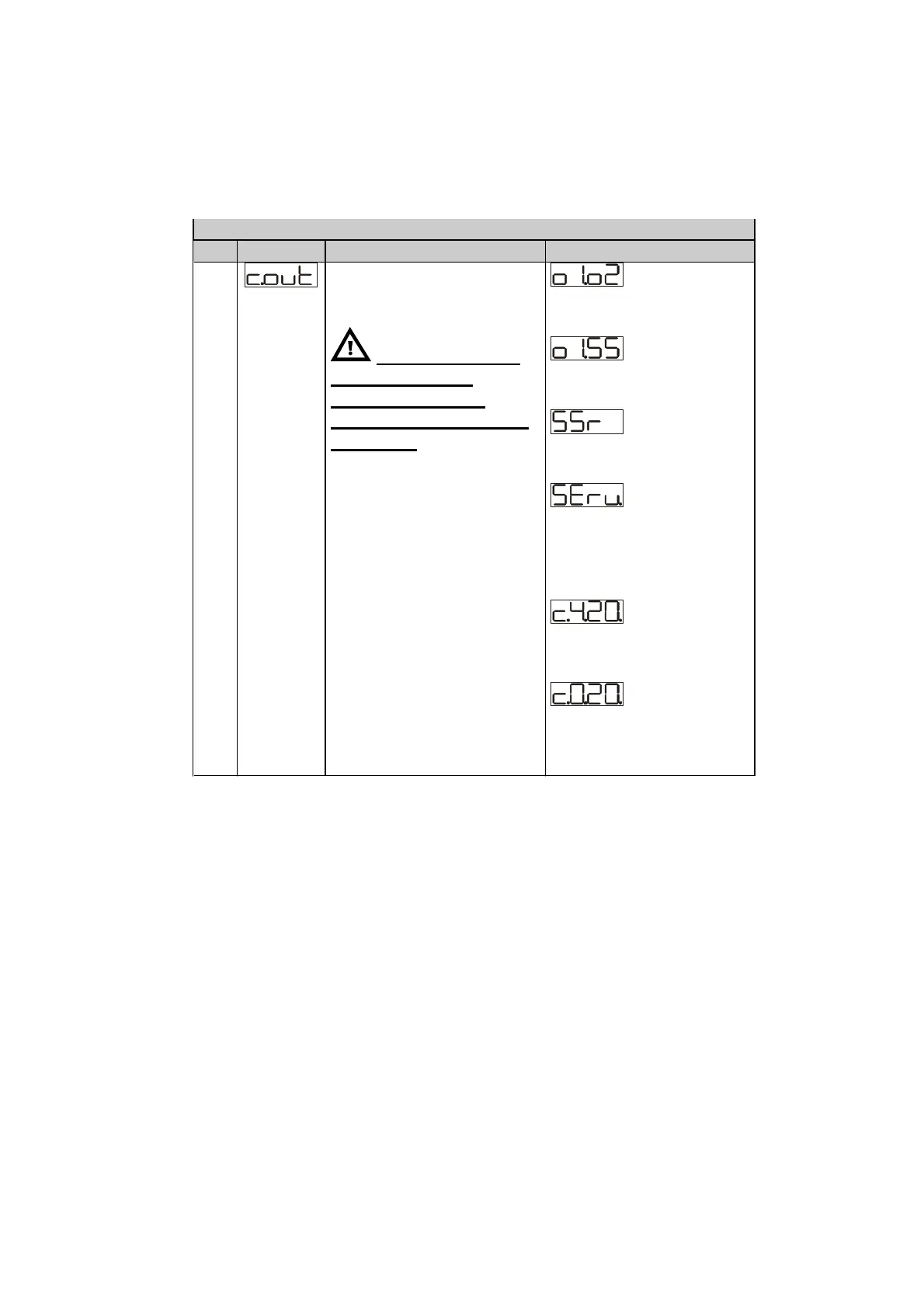

No. Display Description Range
1 Select type of command
output
Jumper JP5 and
JP7 must be set
correctly to avoid
serious damage of the
controller
(no jumpers)
• Control OUT1
• Alarm OUT2
(Jumpers)
• Control OUT1
• Alarm SSR
: (Jumpers )
• Control SSR
• Alarm OUT1
(no jumpers)
• Valve control
out1(Open) +
out2(Close)
• Alarm excluded
(Jumpers)
• Control 4-20mA
• Alarm OUT1
: (Jumpers)
• Control 0-20mA
Alarm OUT1
