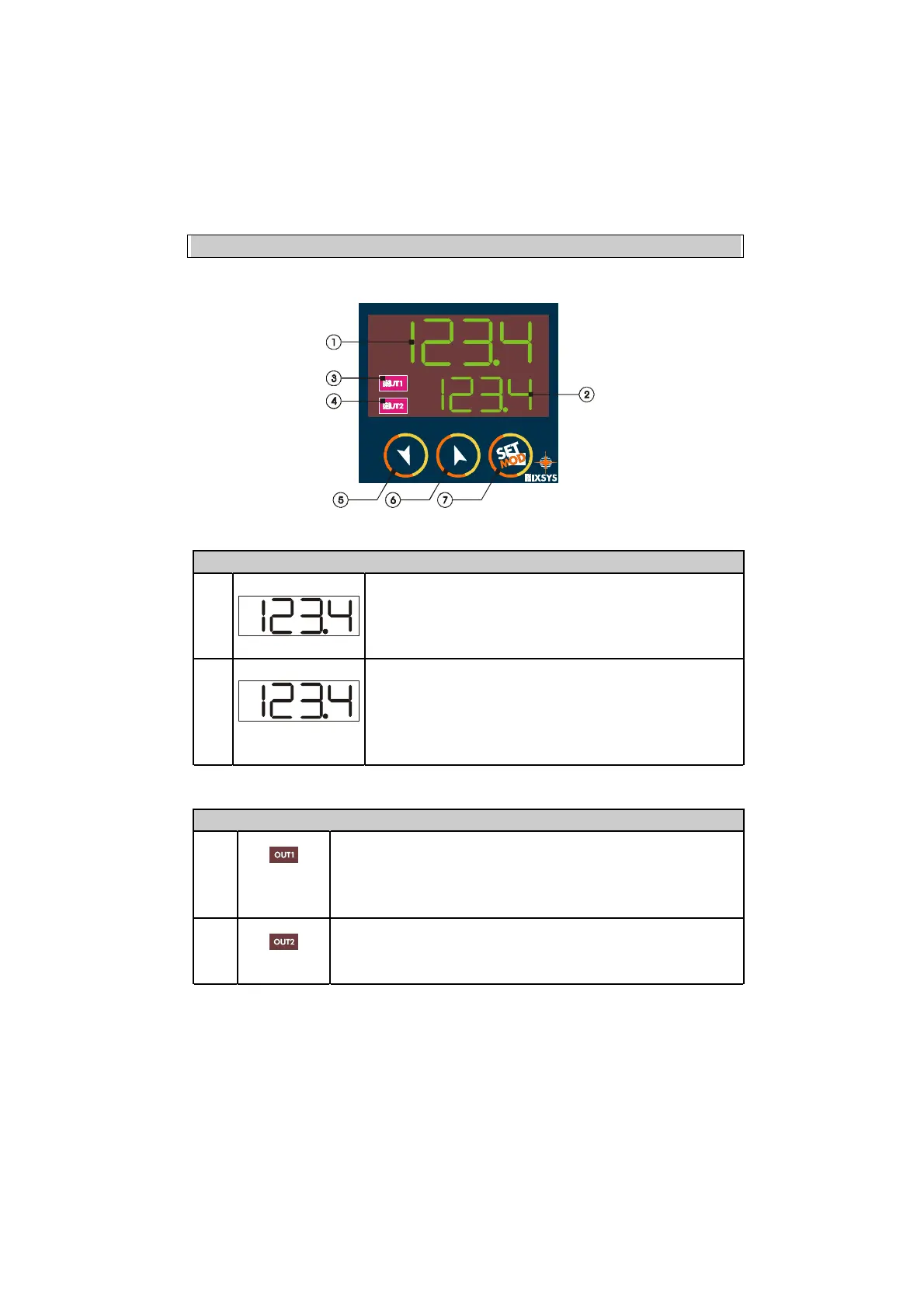

4. Displays and keys
4.1 Displays
1 Visualization of process value, but also of
setpoints. In configuration mode the display
visualizes the code of entering parameter.
2 Visualization of setpoint value. In
configuration mode the display visualizes
the value of entering parameter.
4.2 Leds
3 ON when output Out1 (relay/SSR/4..20mA)is
active.
With configuration Open/Close, led is ON when
valve is opening
4 ON when output Out2 (relay/SSR) is active.
With configuration Open/Close, led is ON when
valve is closing
