32

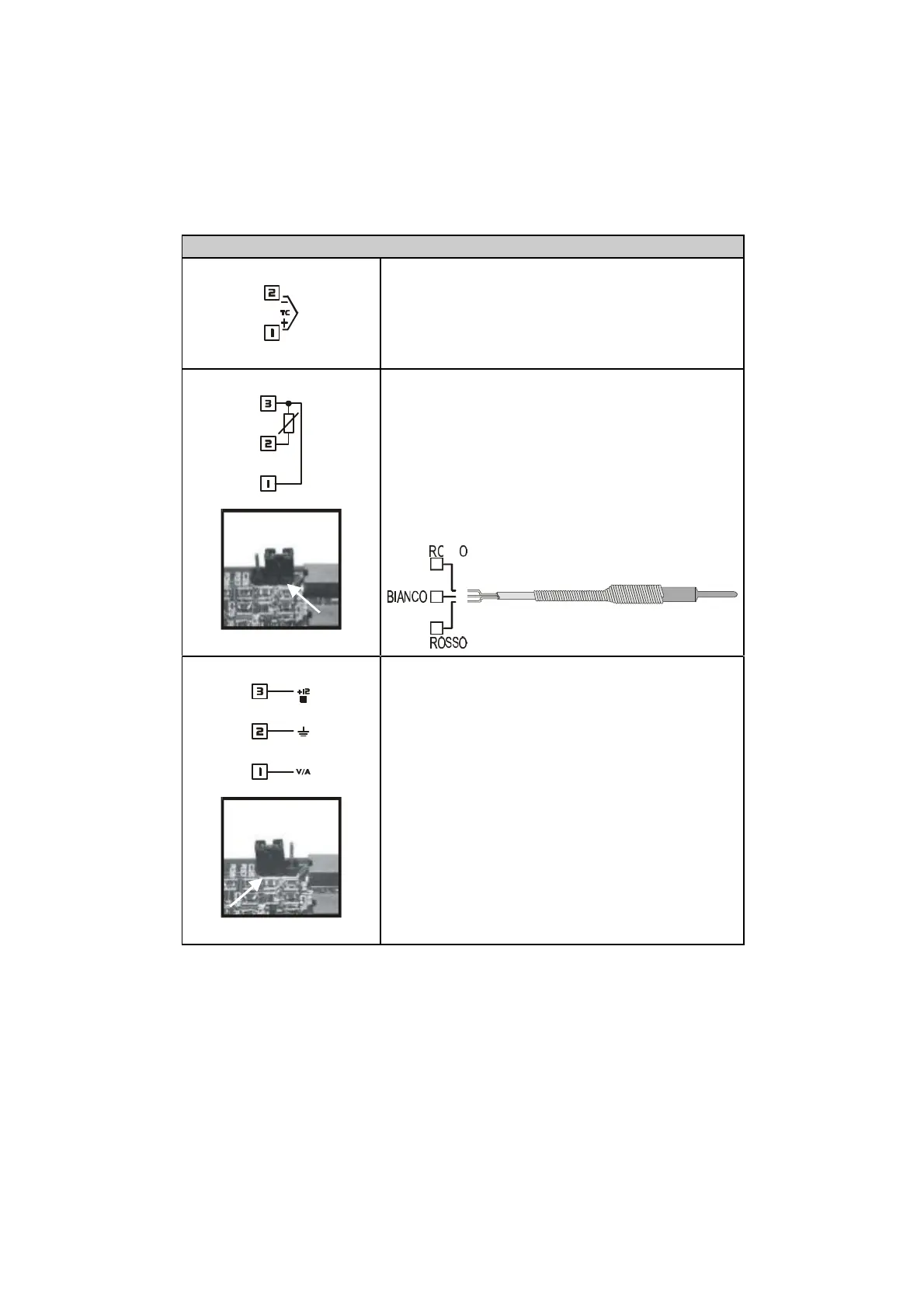

Ingresso analogico
4. Per termocoppie K, S, R, J
Rispettare la polarità
Per eventuali prolunghe utilizzare cavo
compensato e morsetti adatti alla
termocoppia utilizzata (compensati)
5. Per termoresistenze PT100, NI100
Per il collegamento con sonde a tre fili
usare cavi della stessa sezione
Per collegamento con sonde a due fili
cortocircuitare morsetti 1 e 3
Selezione il jumper interno JP3 come
in figura
1
2
3
6. Per segnali normalizzati in corrente
e tensione
Rispettare la polarità
Selezione il jumper interno JP3 come
in figura.
In caso contrario non saranno
disponibili i 12Vdc sul morsetto
numero 3 per l’alimentazione del
sensore.
