Assembling

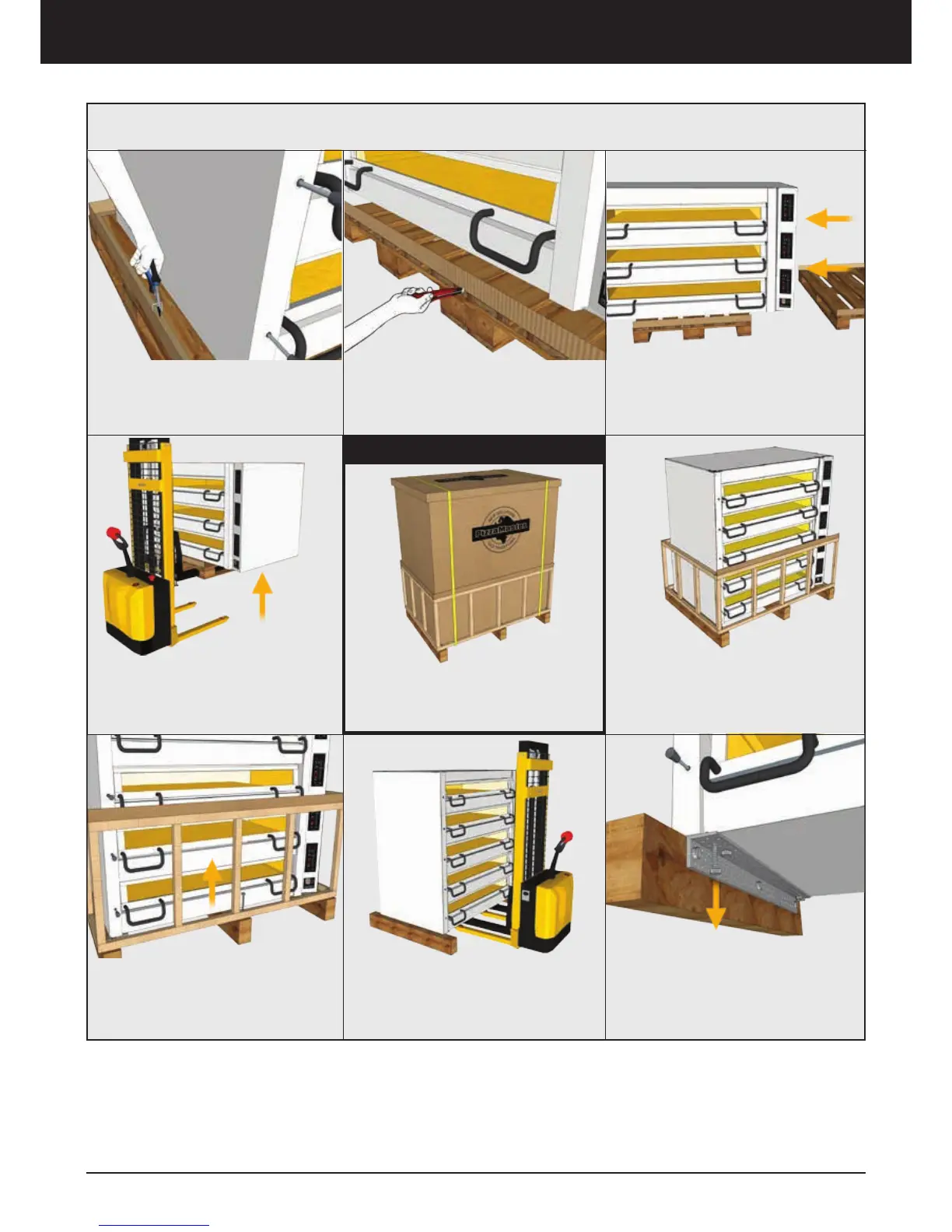

18. Cut the cardboard between every
plallet
19. Push and center steady the oven
over the biggest pallet and remove the
other(s) pallet(s)
20. Carefully lift the oven using a pal-
let truck, forklift or Genie lift, depending
upon the weight of the oven. (Continue at
step 26)
24. Remove the 8 hex bolts M10x30
under the oven and keep them
22. Remove the hex bolts and take out
the wood cage
23. Carefullly lift the oven using a pallet
truck, forklift or Genie lift, depending of
the weight of the oven
21. Remove the cardboard
For 5 Decks Ovens Follow
Steps 21 to 25
Steps for 5 decks ovens
17. Remove the staples from one side of
the oven
Installation – Assembly oven
