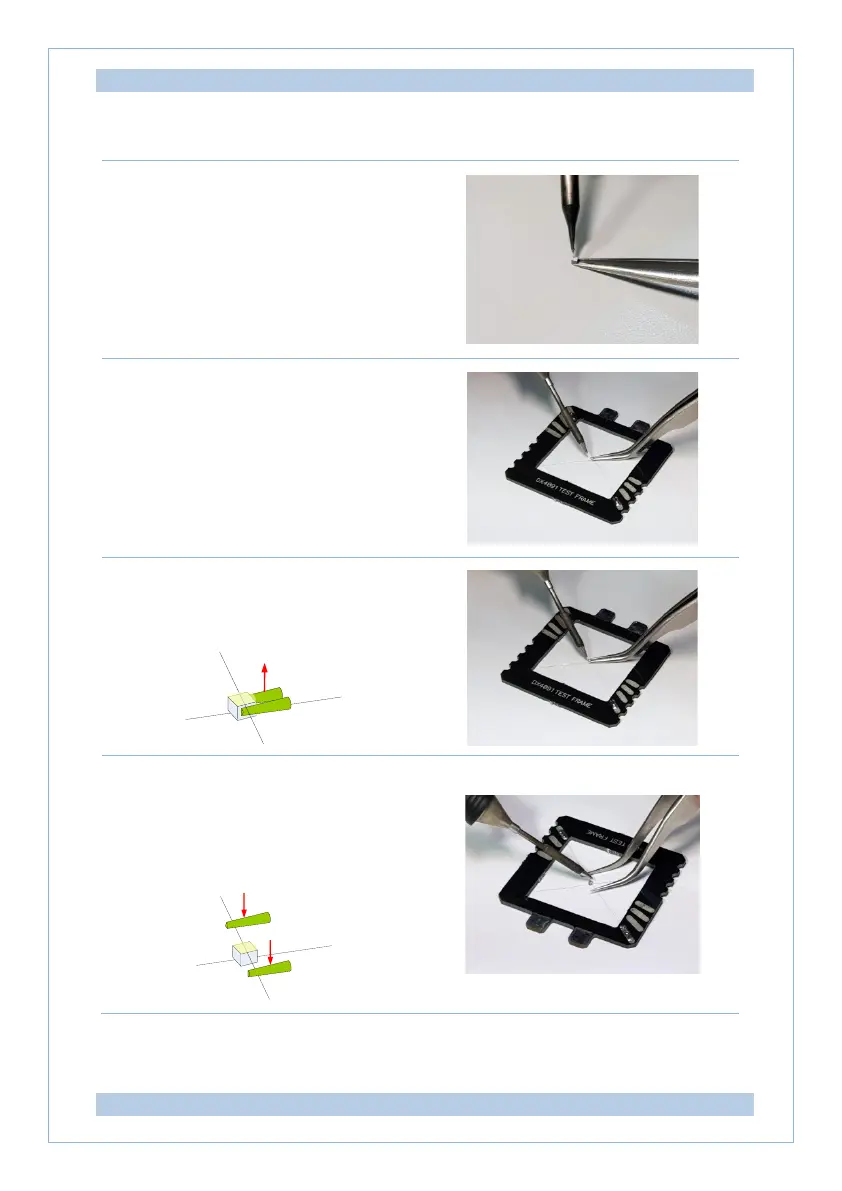

Apply a small amount of low-
melting tin solder on one end side
of the thermoelement using a
soldering
iron (and under a
microscope is preferable).
Place th
e sample at the wire
crosshairs on the frame (between
wires) side with solder on top.
Carefully solder the upper side of
the sample to the upper wire with
a soldering iron.
Flip the test frame.
Using a small amount of solder
and flux, solder the second side
of the sample to the second wire.
