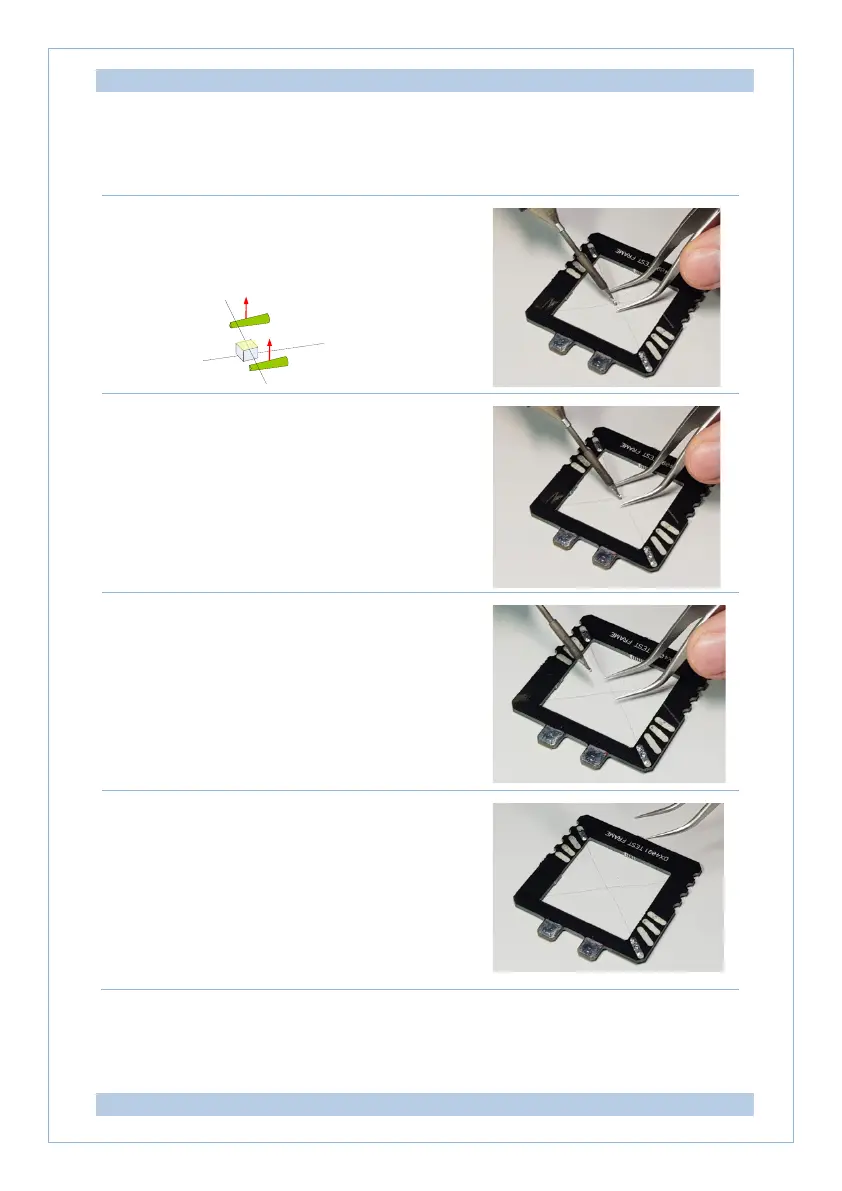

carefully removed from the frame without damaging the wires.
Follow the instructions to remove the pellet from the test frame.
Place the test
frame with the
soldered pellet sample the field of
vision of the microscope.
Carefully hold the sample with
tweezers, bring the heated
soldering iron to the upper end of
the sample.
Heating of the sample will lead to
melting of the solder on both
sides.
Carefully hold wires with
tweezers, remove
the sample
from the place of contact with the
wires.
Frame is clean and ready for
further use.
