PLANET ECLIPSE ETHA2 - PAL Clamping Feed Neck

FIG-1
34
ETHA2 PAL
TECHNICAL

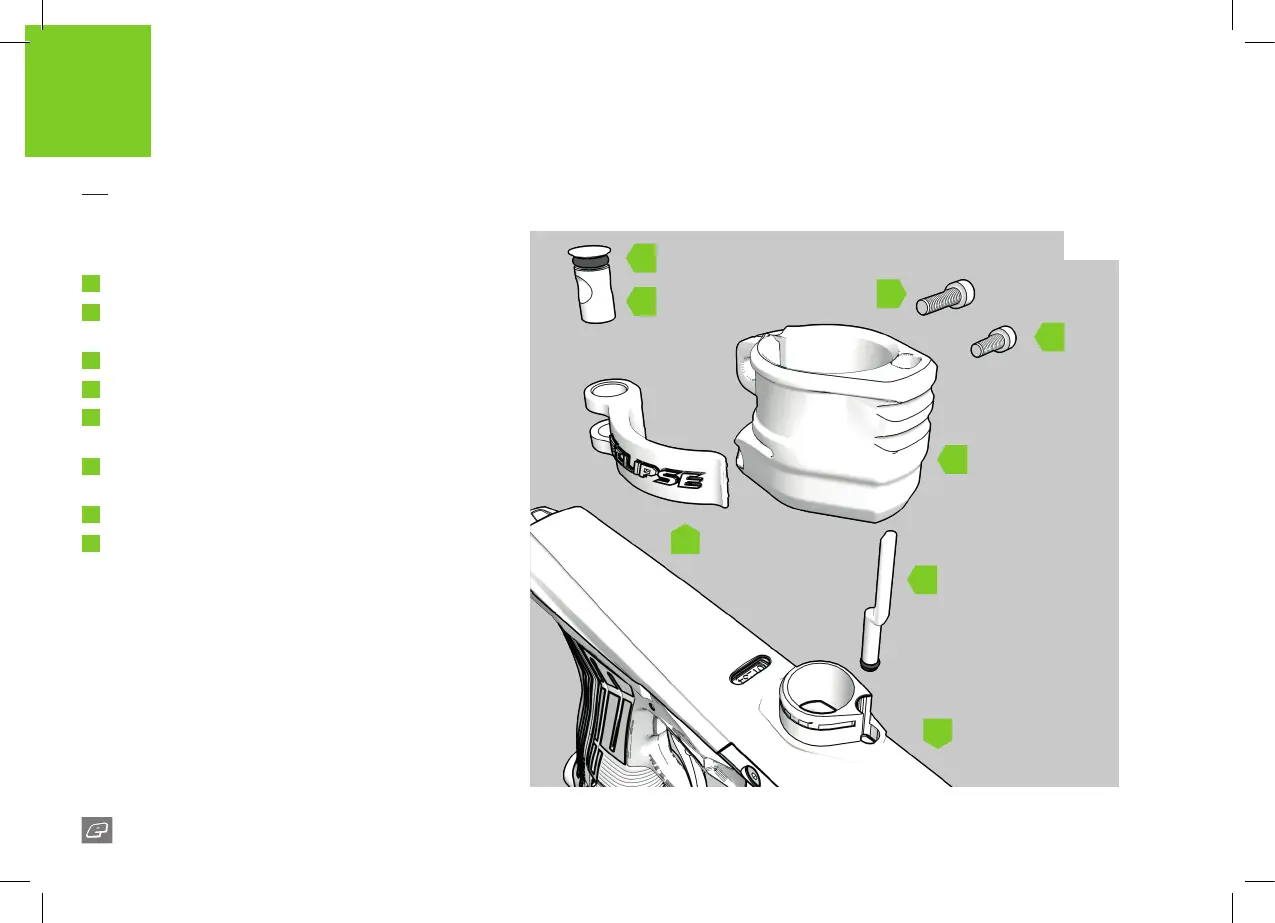

PAL CLAMPING FEED NECK ASSEMBLY
FIG-1
1
Feed swivel
2
Feed swivel o-ring
#006 NBR70
3
Feed lever
4
PAL feed tube
5
Long clamping feed screw
10-32 UNF x 5/8”
6
Short clamping feed screw
10-32 UNF x 1/2”
7
Plunger
8
Marker body
3
1
2
4
6
7
5
8
