PLANET ECLIPSE ETHA2 - Attaching the PAL Loader System

FIG-1
FIG-1
36
ETHA2 PAL
FIG-1

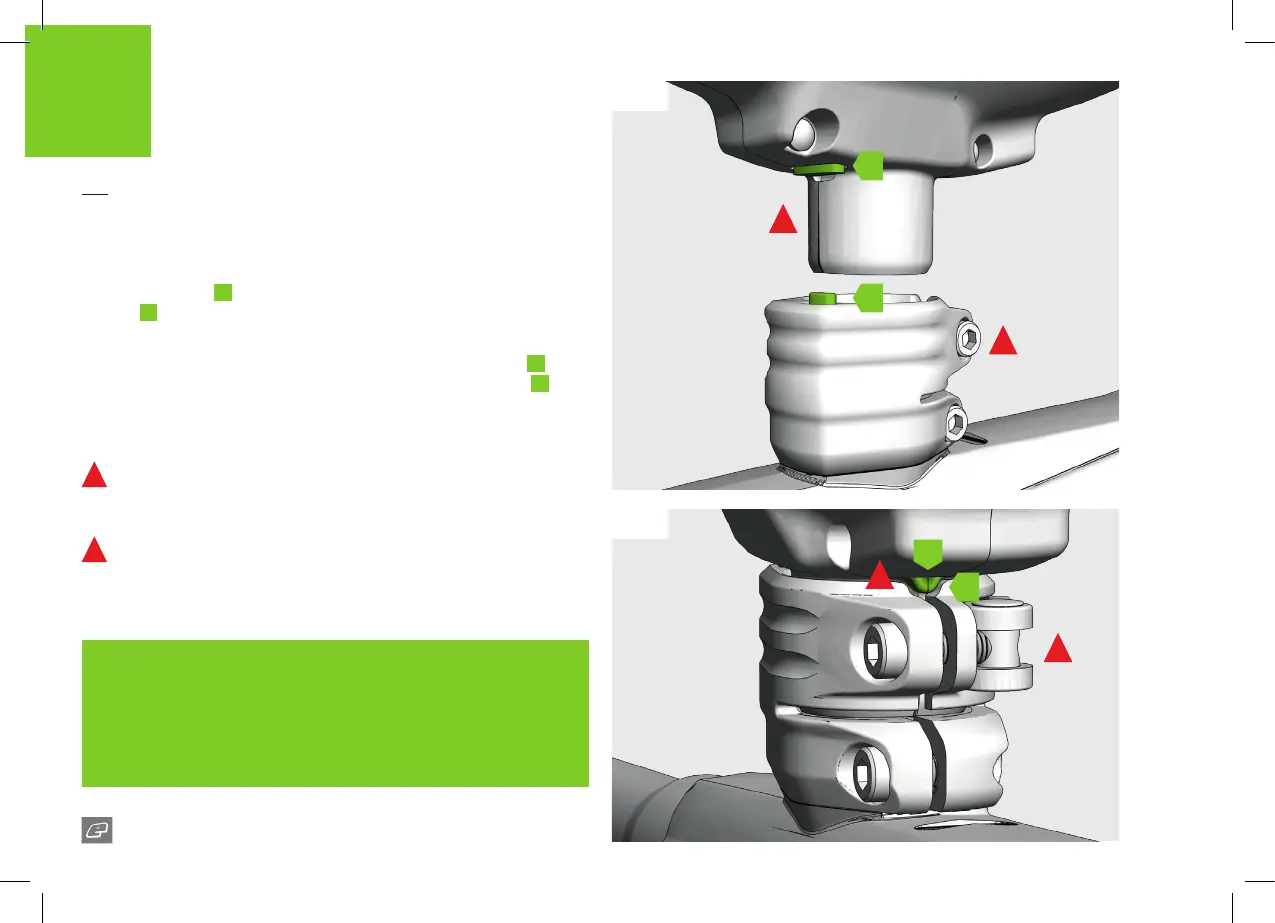

When attaching the PAL loader system to the PAL enabled ETHA2,
ensure the plunger
A
is aligned correctly and sits under the plunger
receiver
B
. The PAL loader must be pushed fully into the feed neck.
FIG-2
To assist with alignment, the dimple at the rear of the PAL loader
A
should sit in the alignment notch at the rear of the PAL feed neck
B
.
1
IMPORTANT! If the PAL loader is too tight or too loose simply
adjust the PAL clamping feed neck lever and/or feed tube
screws to compensate.
2
IMPORTANT! If the PAL loader is not correctly aligned this
could aect the eciency of the PAL loader system.
TECHNICAL
ATTACHING THE
PAL LOADER SYSTEM
A
B
B
A
1
1
2
2
PLEASE NOTE
The PAL feedneck has been specically designed to give the player optimal
battery-free performance when combined with a PAL Loader System.
The user can still attach and use ANY loader without any issues.
The PAL features WILL NOT enhance the performance of a non-PAL loader.
