3. Hardware Introduction
3.1 Front Panel
The front panel of the BSP-360 consists of 5 auto-sensing 10/100/1000Mbps
Ethernet RJ45 ports and one USB interface. The LED Indicators are also located on
the RJ45 ports of the BSP-360.
V1+
Reset
V2+
BSP-360
PWR Alarm PV System
50W 100W 120W
1
2
3
4
5/WAN
PoE Power
Usage
ACTLNK
PoE-in-Use
Industrial Renewable Energy Managed PoE+Switch/Router
DC Ouput: 24V , 2A max.
1
2
3
4
5

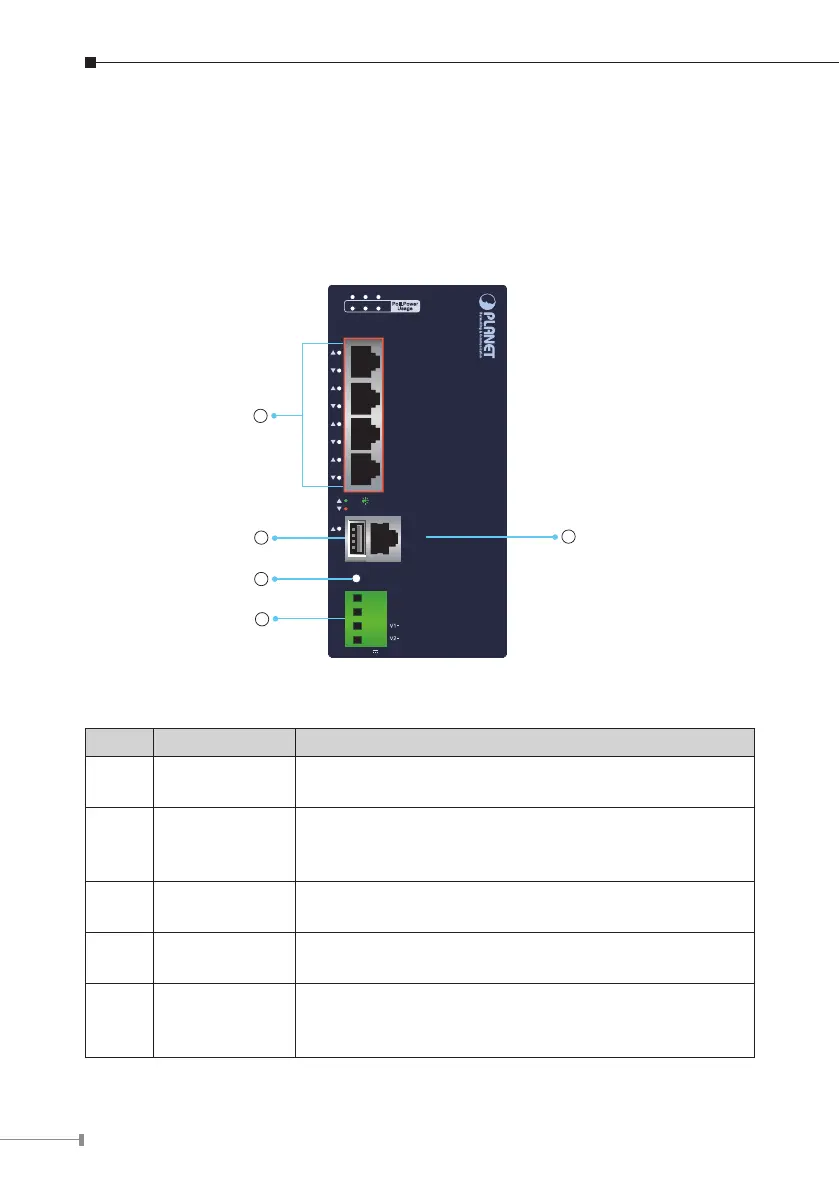

Figure 3-1 Front Panel of BSP-360
Item Interface Description
1 Port-1~Port-4
4 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports with
802.af/at PoE+ injector function.
2 Port-5
One 10/100/1000BASE-T RJ45 auto-MDI/MDI-X port.
Port-5 functions as WAN port when the operation
mode of BSP-360 is congured to “Gateway mode”.
3 USB
Connect the USB storage to USB port and back up the
conguration le.
4 Reset Button
< 5 seconds: System reboot.
> 10 seconds: Factory default.
5
4-pin Terminal
Block
2 x 24V 2A DC output connector.
The output voltage is the same as battery voltage.
Maximum power output is clamped at 48W.
