3.3 Upper Panel
The upper panel of the BSP-360 consists of one terminal block connector with PV
and battery power inputs.
Battery DC Input: 24V , 10A
PV DC Input: 24-45V
, 8.8A max.
Max.
Fault
Alarm Loading: 24V, 1A
V+
PV
Bat.
Alar m
V+
Warning
Please make sure the V+ & V is connected correctly,
and the wire gauge meets the maximum current.
1 2 3 4 5 6

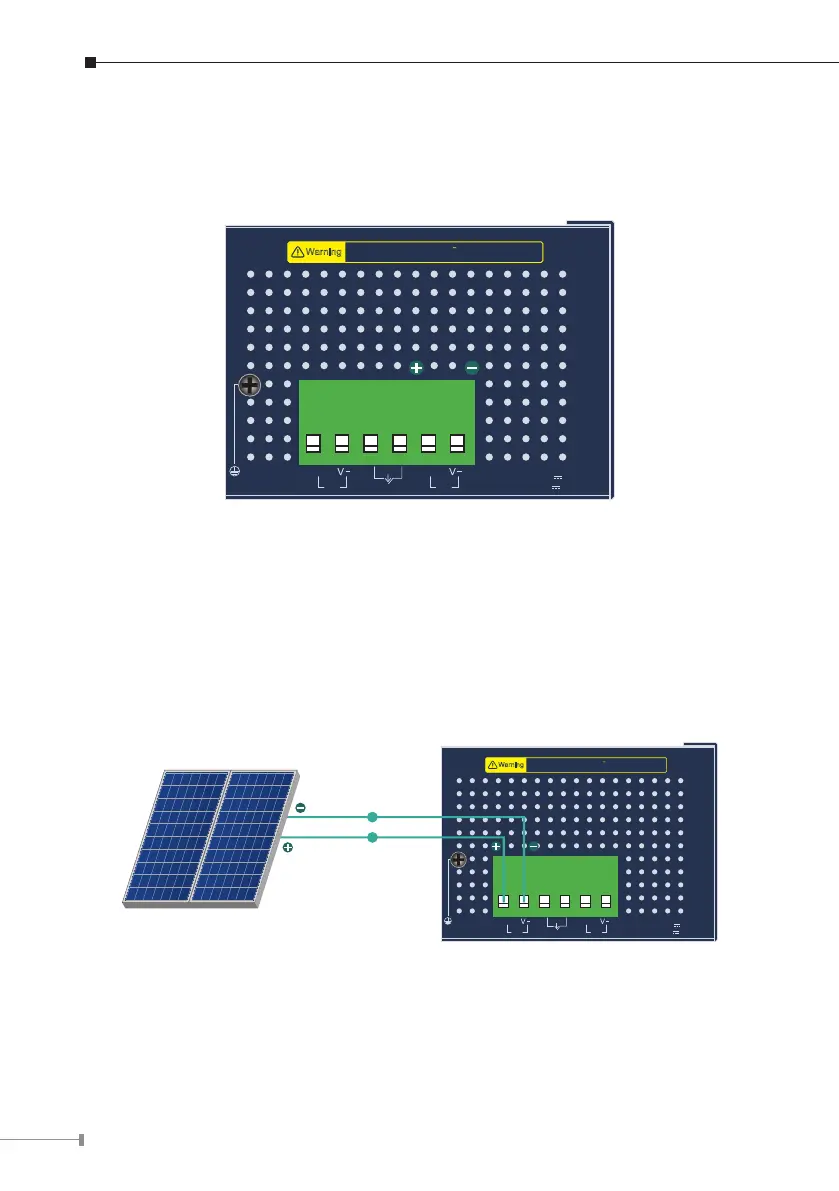

Figure 3-2 Upper Panel
The input voltage range of each interface is shown as follows:
PV In Connector
24~45V DC
Battery DC Input: 24V
, 10A
PV DC Input: 24-45V
, 8.8A max.
Max.
Fault
Alarm Loading: 24V, 1A
V+
PV
Bat.
Alarm
V+
Warning
Please make sure the V+ & V is connec ted correctly,
and the wire gauge meets the maximum current.
1 2 3 4 5 6
Solar PV
24~45V DC
DC
DC
