10
Standard
VLAN
Extend

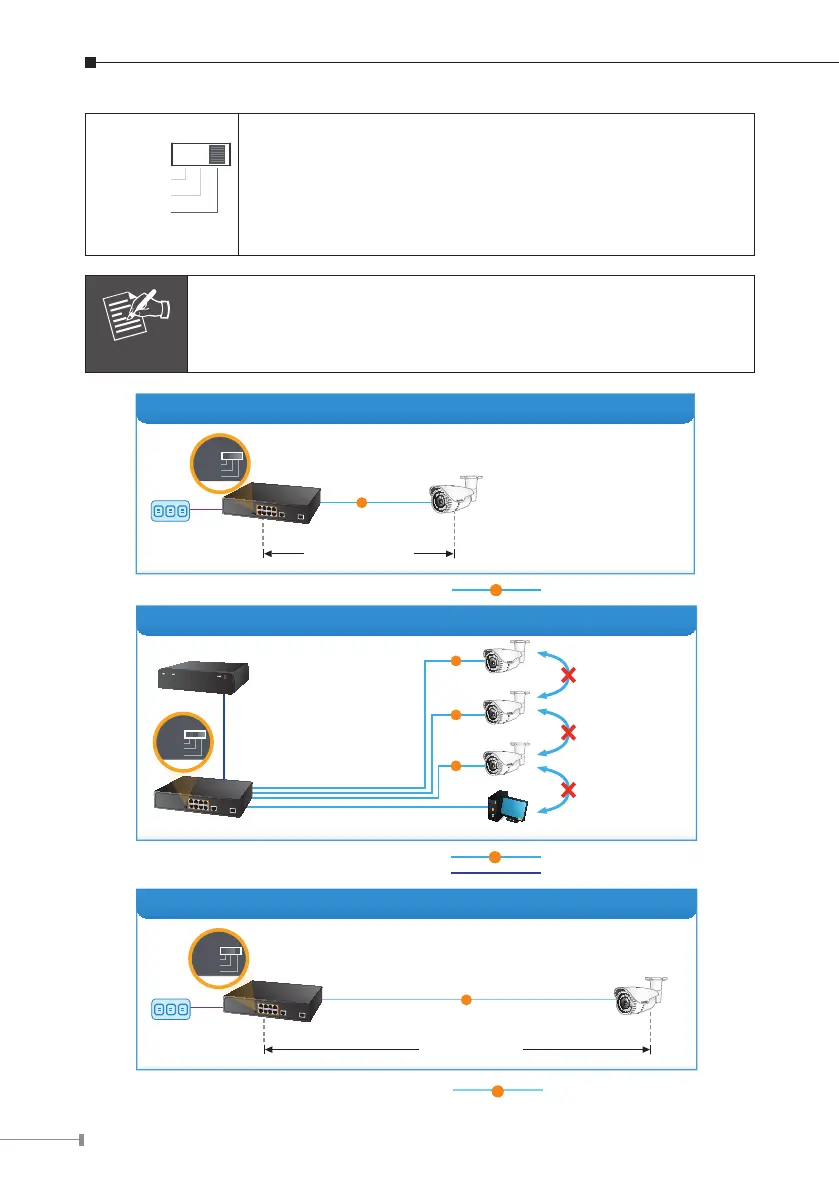

This mode makes the FGSD-1011HP operate as an Extend
and VLAN isolation switch and
1. Port 1 to port 8 will isolate respectively
2. Port 1 to port 8 can only communicate with port 9 and port
10 (uplink port).
3. 30-watt PoE transmit distance of 250m at speed of 10Mbps.
Note
Please reboot the FGSD-1011HP after adjusting the DIP switch to
take effect.
Standard Mode (default)
Power
PoE IP Camera
PoE
100 meters (328 feet)
FGSD-1011HP
PoE
100BASE-TX UTP with PoE
Standard
VLAN
Extend
VLAN Isolation Mode
NVR
PC
Ports 1 to 8
Access Denied
PoE
PoE
PoE
PoE
100BASE-TX UTP with PoE
FGSD-1011HP
IP Camera
IP Camera
IP Camera
Standard
VLAN
Extend
Port 9 and 10
To Port 1~8 Access Permitted
1000BASE-T UTP
Extend Mode
Power
250 meters (820 feet)
PoE
PoE
10BASE-T UTP with PoE
FGSD-1011HP
PoE IP Camera
Standard
VLAN
Extend
