2. Hardware Description
The switch provides three different running speeds – 10/100/1000Mbps, and
automatically distinguishes the speed of the incoming connection.
This section describes the hardware features of the FGSD-1011HP. For easier
management and control of the FGSD-1011HP, familiarize yourself with its display
indicators and ports. Front panel illustrations in this chapter display the unit LED
indicators. Before connecting any network device to the FGSD-1011HP, please read
this chapter carefully.
2.1 Front Panel
The front panel of the FGSD-1011HP PoE+ Ethernet Switch consists of 8 auto-
sensing 10/100Mbps Ethernet RJ45 ports, 1 auto-sensing 10/100/1000Mbps
Ethernet RJ45 port and 1 auto-sensing 10/100/1000 Mbps SFP port. The LED
indicators are also located on the front panel of the FGSD-1011HP.
4 6 82
1 3 5 7 9
1
PWR
Gigabit
53 7
2 6
4 8
9 10
PoE
PoE
FGSD-1011HP
8-Port 10/100TX 802.3at PoE+1-Port Gigabit+
1-Port Gigabit SFP Desktop Switch
PoE In-Use
ACTLNK
1000
ACTLNK
Standard
VLAN
Extend
10
Uplink

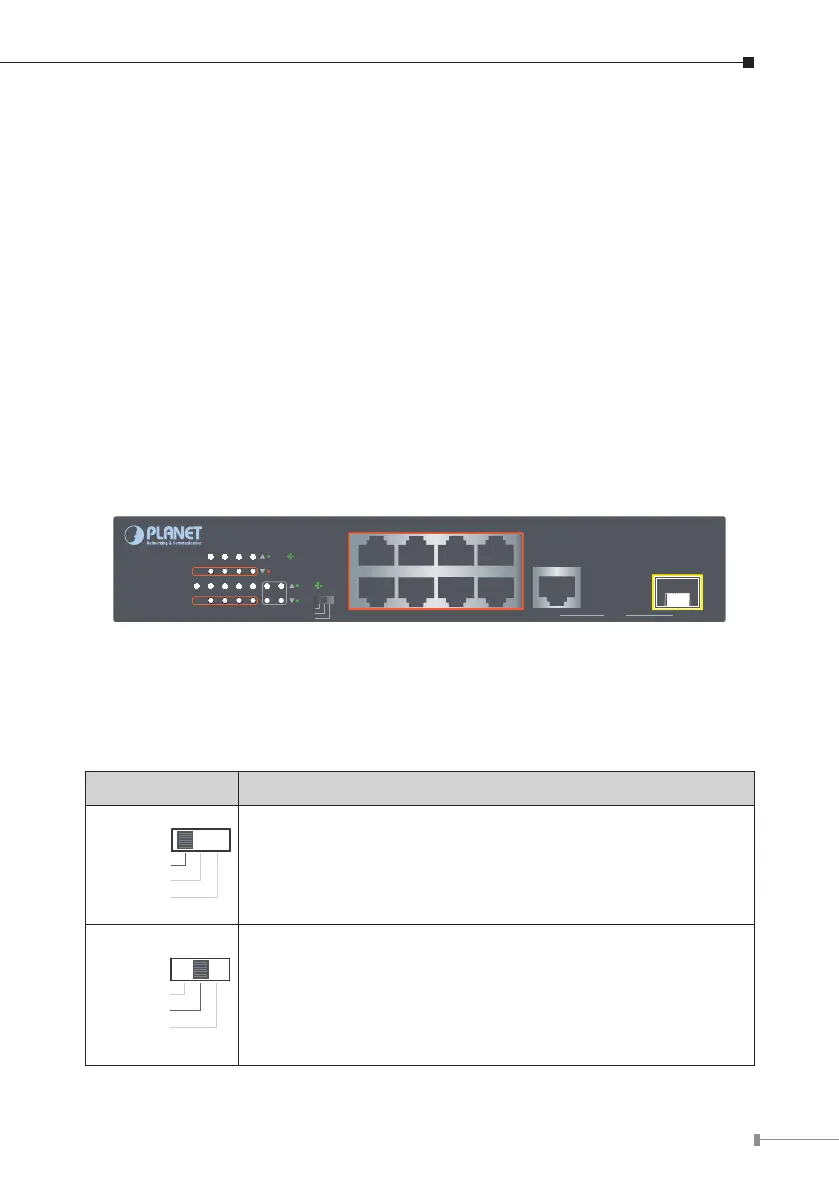

Figure 2-1: FGSD-1011HP Switch Front Panel
The front panel of the FGSD-1011HP provides one DIP switch for Standard, VLAN
and Extend mode selections. The detailed descriptions are shown in the following
table.
DIP Switch Mode Function
Standard
VLAN
Extend
This mode makes the FGSD-1011HP operate as a general
switch and all PoE ports operate at 10/100Mbps auto-
negotiation.
Standard
VLAN
Extend
This mode makes the FGSD-1011HP operate as a VLAN
isolation switch and
1. Port 1 to port 8 will isolate respectively.
2. Port 1 to port 8 can only communicate with port 9 and port
10 (uplink port).
