13
Caution:
You must use the screws supplied with the mounting brackets. Damage
caused to the parts by using incorrect screws would invalidate your
warranty.
Step 3: Secure the brackets tightly.
Step 4: Follow the same steps to attach the second bracket to the
opposite side.
Step 5: After the brackets are attached to the Fast Ethernet Switch,
use suitable screws to securely attach the brackets to the
rack, as shown in Figure 2-5.

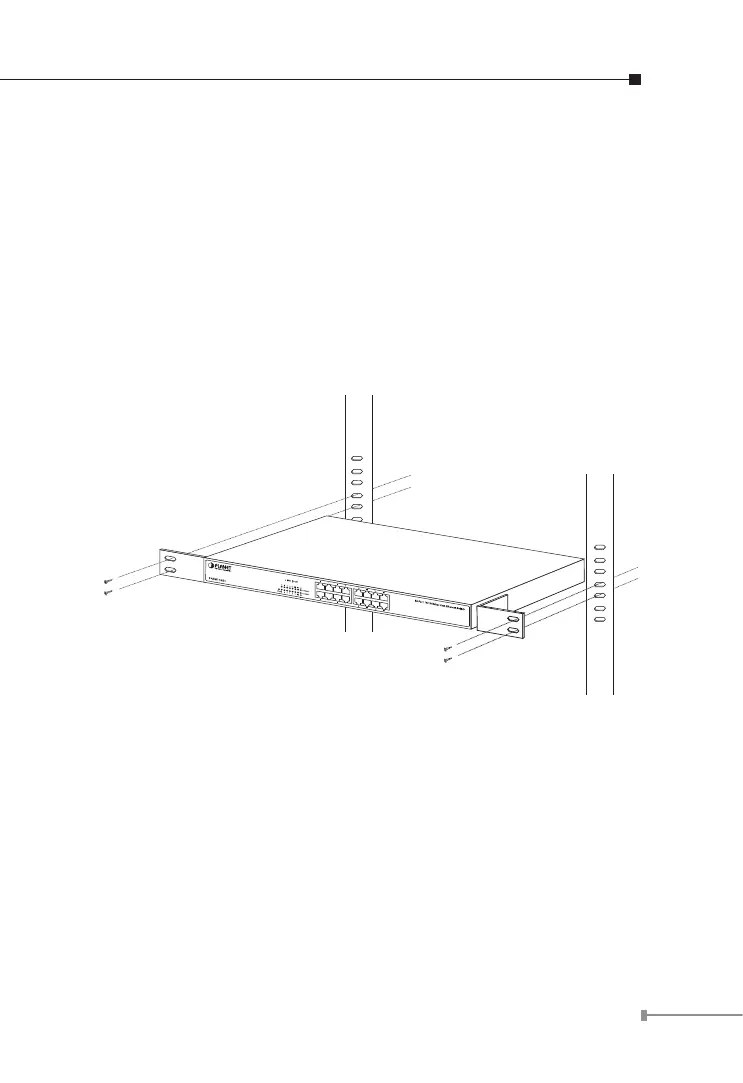

Figure 2-5 Mounting the Fast Ethernet Switch in a Rack
Step 6: Proceeds with the steps 4 and steps 5 of session 2.2.1
Desktop Installation to connect the network cabling and
supply power to your Fast Ethernet Switch.
