2.2.2 Rack Mounting
To install the Fast Ethernet Switch in a 19-inch standard rack, follow
the instructions described below.
Step 1: Place your Fast Ethernet Switch on a hard at surface, with
the front panel positioned towards your front side.
Step 2: Attach a rack-mount bracket to each side of the Switch with
supplied screws attached to the package. Figure 2-4 shows
how to attach brackets to one side of the Fast Ethernet
Switch.

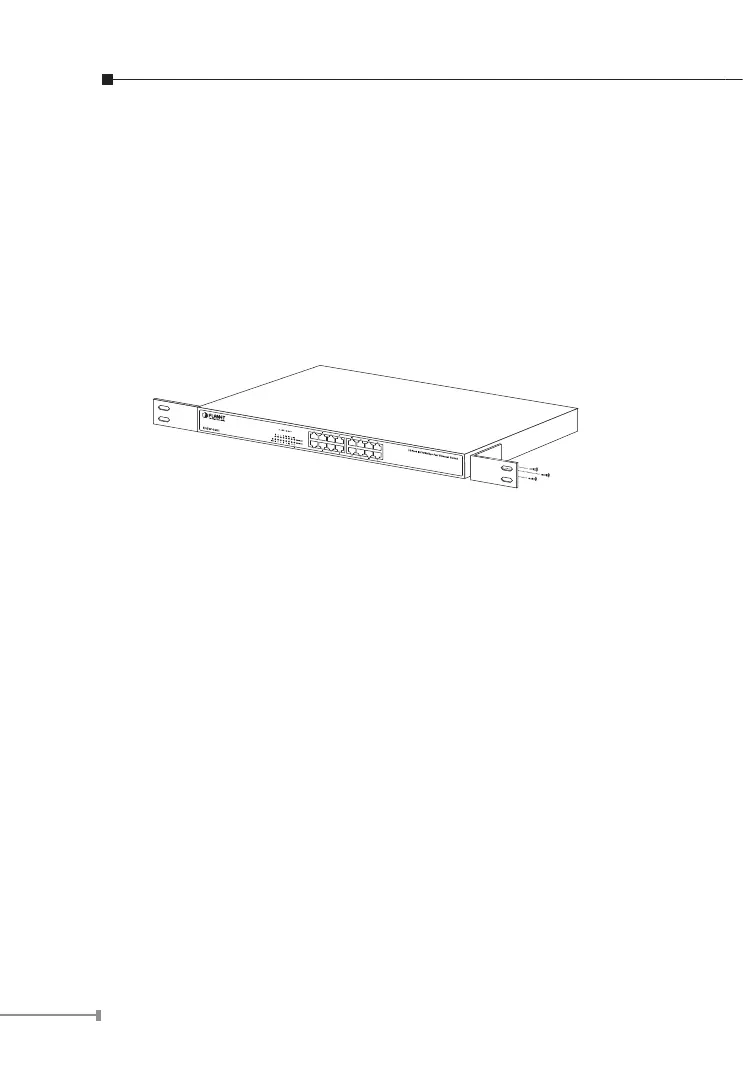

Figure 2-4 Attaching the brackets to the Fast Ethernet Switch
