2.2.3 Wall-mount Plate Mounting
To install the Industrial Managed Switch on the wall, please follow the instructions below.
Follow all the wall-mount installation steps as shown in the example.

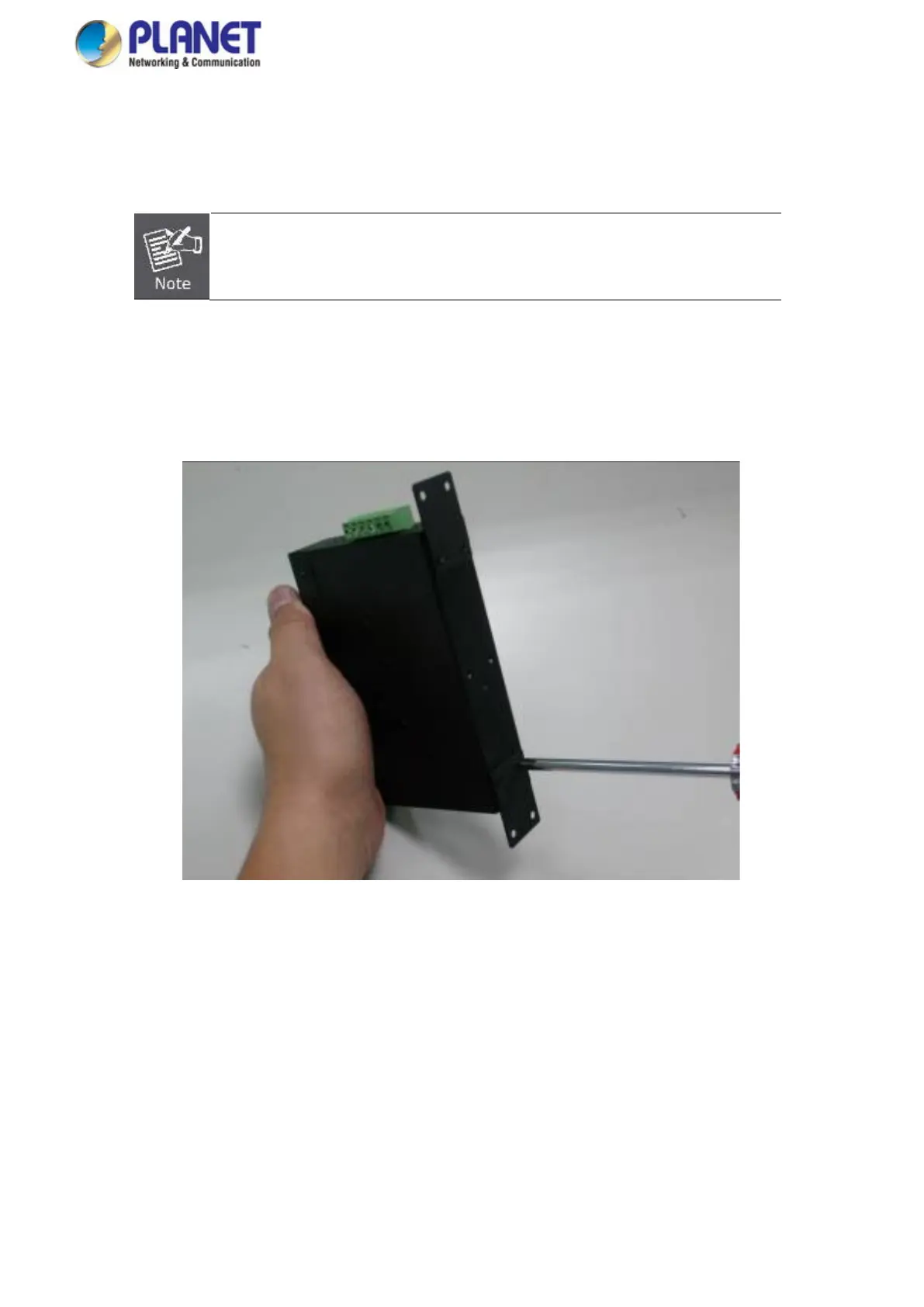

Step 1: Remove the DIN rail bracket from the Industrial Managed Switch. Use the screwdriver to loosen the screws to remove
the DIN-rail bracket.
Step 2: Place the wall-mount plate on the rear panel of the Industrial Managed Switch.
Step 3: Use the screwdriver to screw the wall-mount plate on the Industrial Managed Switch.
Step 4: Use the hook holes at the corners of the wall mount plate to hang the Industrial Managed Switch on the wall.
Step 5: To remove the wall-mount plate, reverse the steps above.
