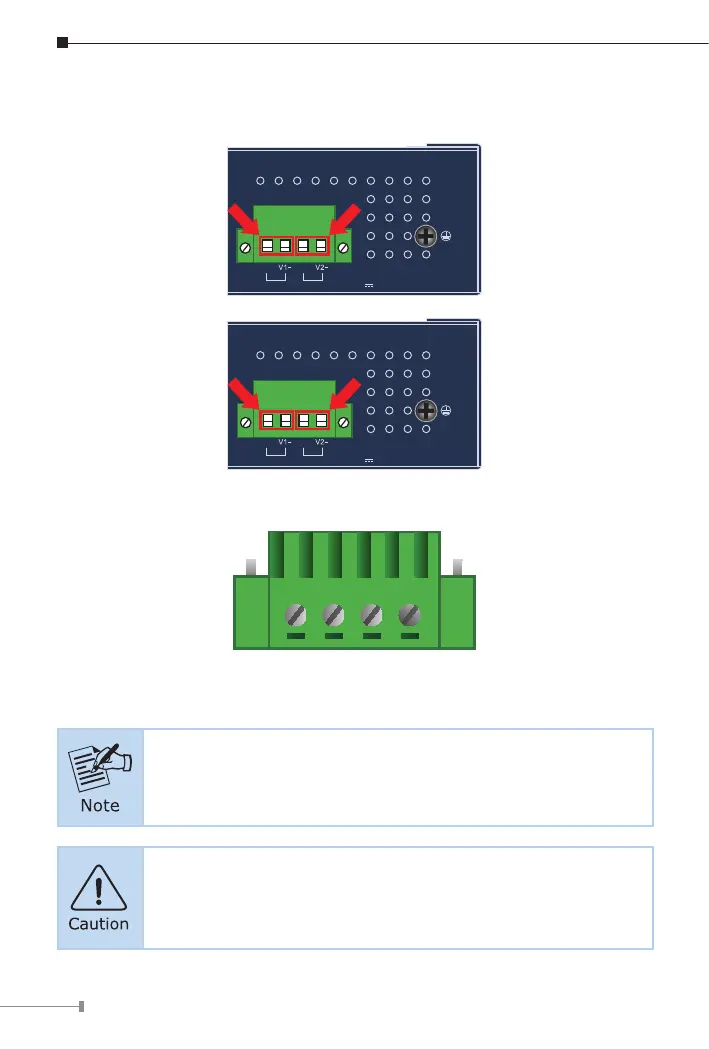

1. Insert positive and negative DC power wires into contacts 1 and 2 for
POWER 1, or contacts 3 and 4 for POWER 2.
V1+
V2+
PWR1
PWR2
DC Input:
48-54V
, 4A max.
1 2 3 4
V1+
V2+
PWR1
PWR2
DC Input:
12-54V
, 4A max.
1 2 3 4
2. Tighten the wire-clamp screws for preventing the wires from loosening.
1 2 3 4
Power 1 Power 2
+ - + -
The wire gauge for the terminal block should be in the range
between 12 and 24 AWG.
PWR1 and PWR2 must provide exactly the same DC voltage for
power load balance while operating with dual power input.
