Planet IPOE-270 User Manual

9

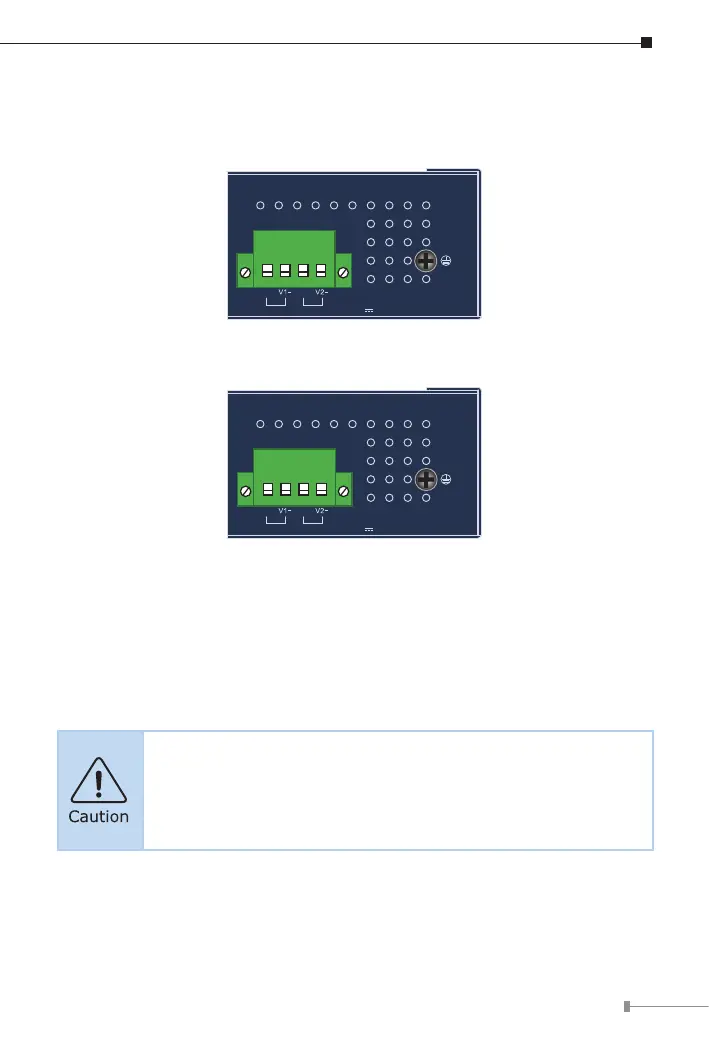

3.2 Device Upper Panel
The upper panels of the Industrial PoE++ Injector Hubs consist of one terminal
block connector within two power inputs.
V1+
V2+
PWR1
PWR2
DC Input:
48-54V
, 4A max.
1 2 3 4
Figure 3: IPOE-270 Top View
V1+
V2+
PWR1
PWR2
DC Input:
12-54V
, 4A max.
1 2 3 4
Figure 4: IPOE-270-12V Top View
3.3 Wiring the Power Inputs
The terminal block connector on the top panel of Industrial PoE++ Injector
Hub is used for two DC redundant power inputs. Please follow the steps below
to insert the power wire.
When performing any of the procedures like inserting the wires
or tightening the wire-clamp screws, make sure the power is
OFF to prevent from getting an electric shock.
