3. Hardware Introduction
3.1 Device Front Panel
The front panels of the Industrial PoE++ Injector Hubs consist of Ethernet
interfaces and LED indicators.

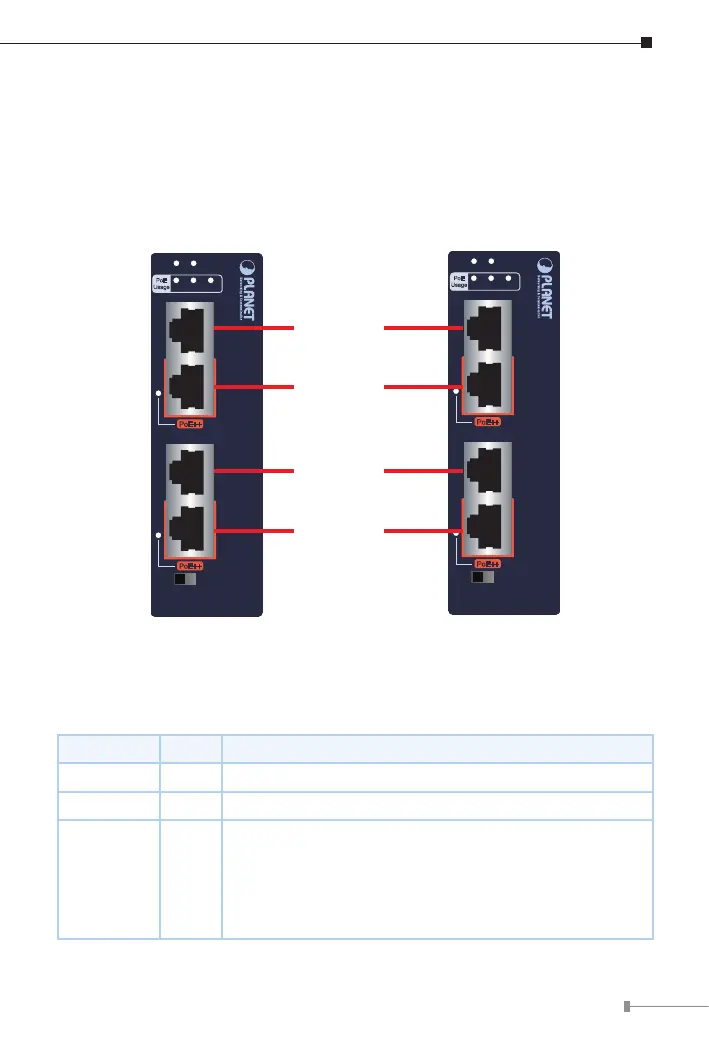

Front View
P1 P2
60W 120W 180W
PoE
Usage
Ethernet
Ethernet
IPOE-270
PoE++
PoE++
BT Legacy
P1 P2
60W 120W 180W
PoE
Usage
Ethernet
Ethernet
IPOE-270-12V
PoE++
PoE++
BT Legacy
Figure 1: IPOE-270 Front View Figure 2: IPOE-270-12V Front View
LED Denition
System LEDs
LED Color Function
P1 Green Lights to indicate DC power input 1 has power.
P2 Green Lights to indicate DC power input 2 has power.
PoE Usage Amber
60W, 120W, 180W
Lights to indicate the system consumes over 60-/120-/
180-watt PoE power budget.
Blinks to indicate the system consumes less 60-/120-/
180-watt PoE power budget.
Data port 1
Data port 2
Data port 3
Data port 4
