2. Installation
This section describes the functionalities of the industrial PoE extender’s
components and guides you to how to install it. Basic knowledge of
networking is assumed. Please read this chapter completely before
continuing.

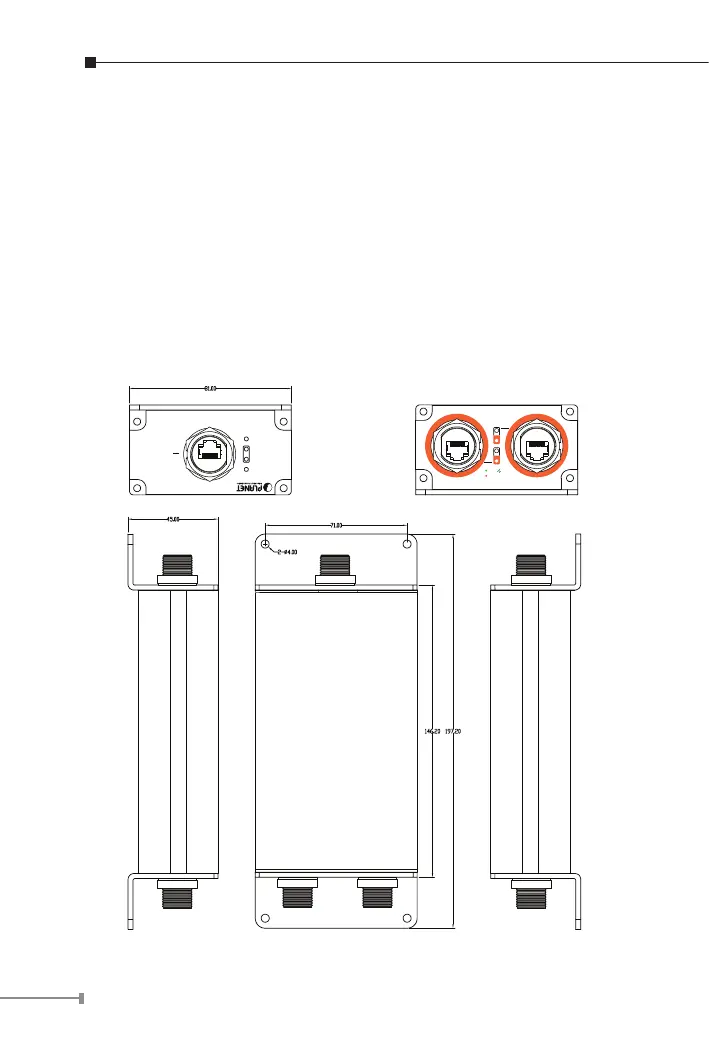

2.1 Physical Dimensions
IPOE-E202 industrial 1-port 802.3at PoE+ to 2-port 802.3af PoE
extender dimensions:
(W x D x H): 199.6 x 80 x 40 mm
ACTLNK
PoE In-use
PoE 1 Out PoE 2 Out
10/100/1000T
1000
Budget Alert
LNK/ACT
PWR
PoE IN
IPOE-E202
