Step 3: Once the IPOE-E202 detects the existence of an IEEE
802.3at/af device, the “PoE-in-Use” LED indicator will be lit
steadily, showing it is providing power.

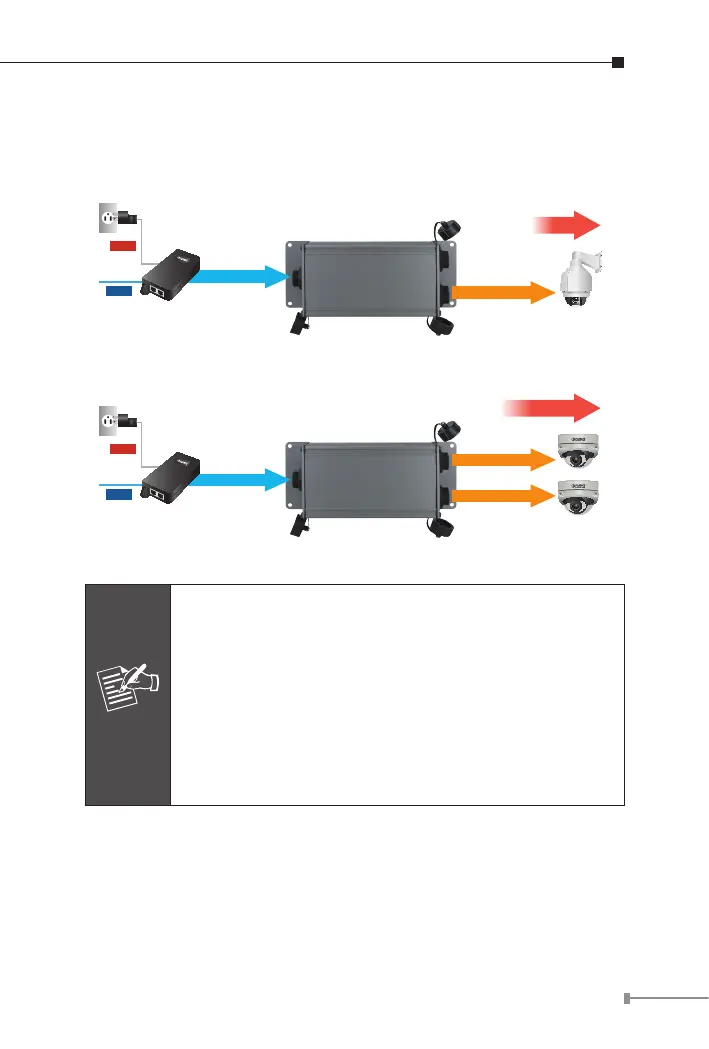

PoE Dome IP Camera
PoE+/30W
IEEE 802.3af/12W
Power
Data
100m
100m
IEEE 802.3af/12W
100m
PoE PTZ IP Camera
PoE+/30W
IEEE 802.3at/25W
25W
12W+12W
Power
Data
100m
PoE Injector/Switch
PoE Extender
PoE Extender
PoE Injector/Switch
100m
1 In 1 Out
1 In 2 Out
Note
1. If the connected device is not fully complying with
IEEE 802.3af/at standard or in-line power device, the
PoE-in-Use LED indicator of the IPOE-E202 will not be
lit steadily.
2. According to IEEE 802.3af/at standard, the IPOE-E202
will not inject power to the cable if not connected to
a standard IEEE 802.3af/at device.
3. DO NOT connect any PSE to port 1 ~ port 2 of the
IPOE-E202, it may damage the device permanently.
