3. Application

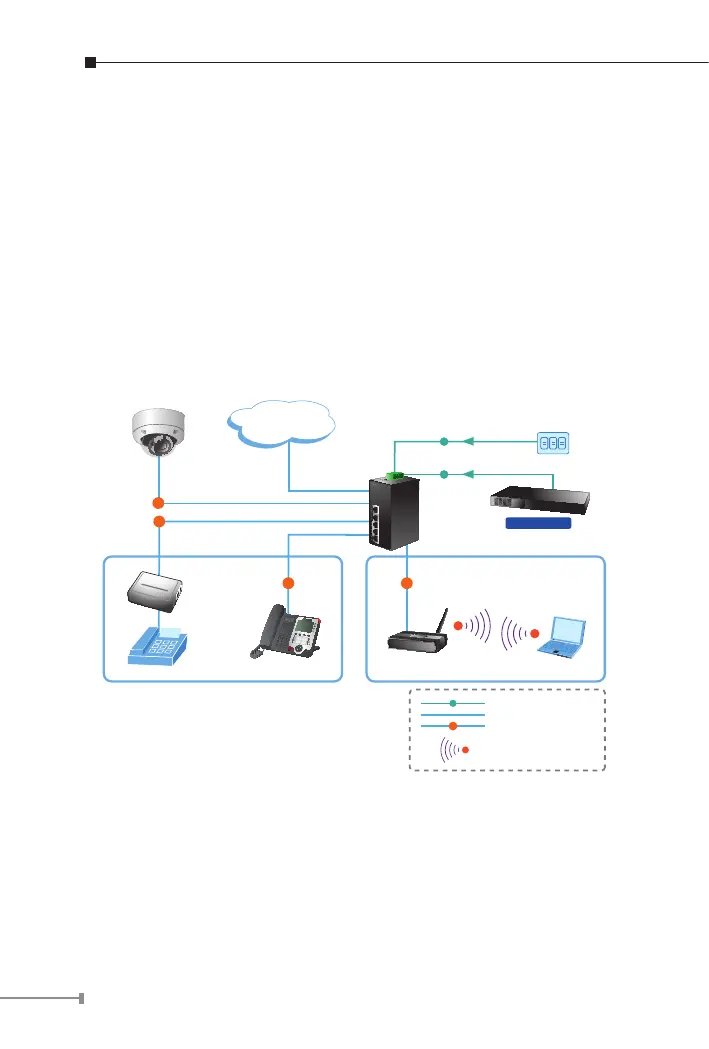

In this paragraph, we will describe how to install Industrial Fast
Ethernet Switch and the installation points for the attention.
Providing up to 4 PoE, in-line power interfaces, the Industrial Fast
Ethernet Switchcan easily build a power central-controlled IP phone
system, IP camera system, AP group for the enterprise. For instance, 4
camera / AP can be easily installed around the corner in the company
for surveillance demands or build a wireless roaming environment in
the ofces. Without the power-socket limitation, the switch makes the
installation of cameras or WLAN AP more easily and efciently.
