MB502 6” Deluxe Jointer
１３
handle and repositioning it onto the serrated nut located under the handle.

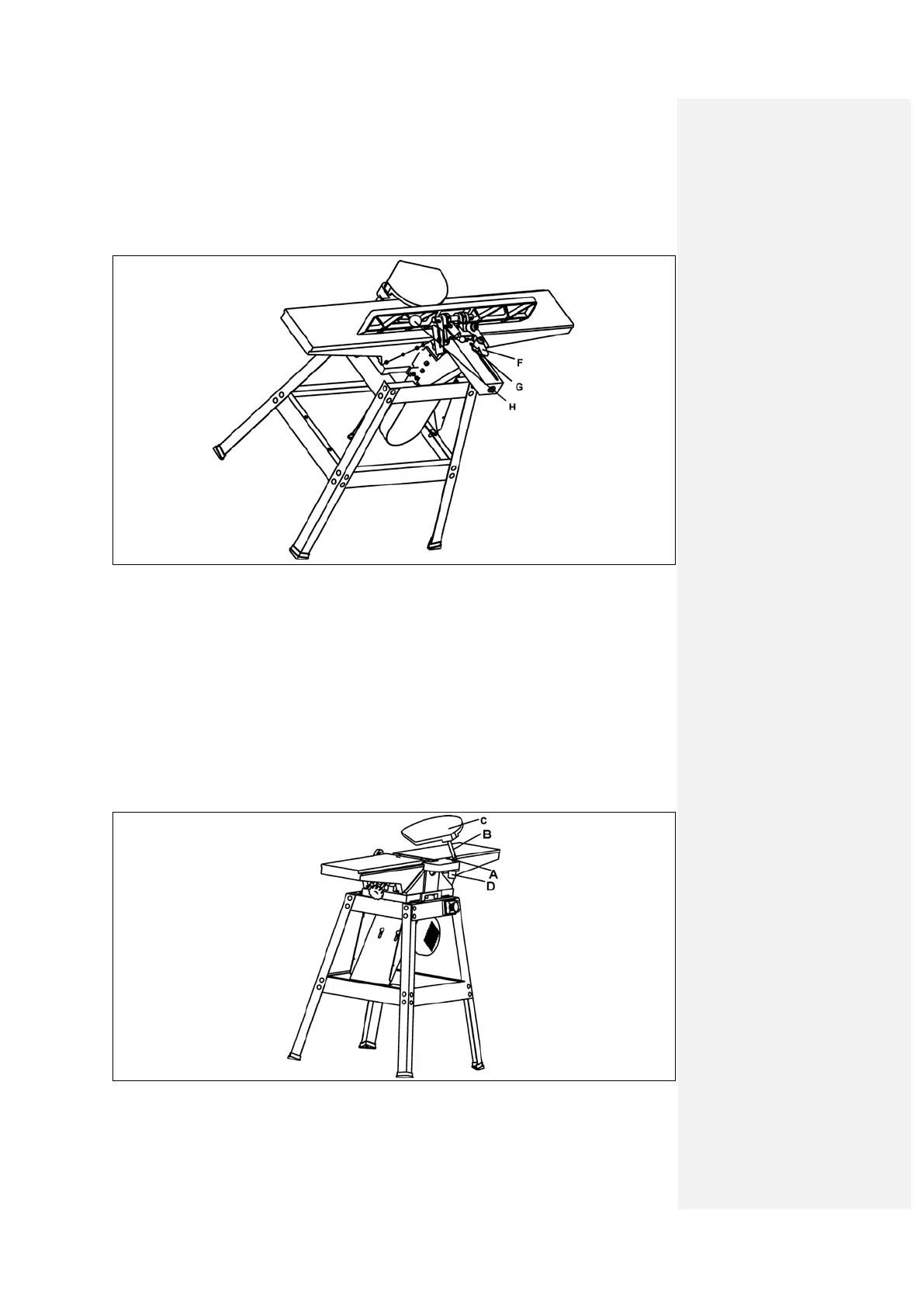

4. Thread fence-tilting handle (H) Fig. 16, to threaded hole in back of fence as shown.
Fig. 16
ASSEMBLING CUTTERHEAD GUARD
1. Remove setscrew (A) Fig. 17, from post (B) of cutterhead guard (C).
2. Assemble cutterhead guard (C) Fig. 17, to the jointer by inserting post (B) down
through the hole in the infeed table. NOTE: A spring is supplied in knob assembly (D)
that returns the guard (C) over the cutterhead after a cut has been made. Turn knob
(D) to provide tension on the spring before inserting post (B). Make certain the spring
engages in the slot of the post. If spring tension is too much or too little, adjust the
spring accordingly by removing the guard and rotating knob (D).
Fig. 17
