MB502 6” Deluxe Jointer
６
UNPACKING AND CLEANING
WARNING: JOINTER WEIGHT IS APPROXIMATELY 175 LBS. CARE MUST BE
TAKEN WHEN LIFTING JOINTER ONTO STAND. A MINIMUM OF TWO PEOPLE WILL
BE REQUIRED TO LIFT THE MACHINE. Your new jointer is shipped complete in one

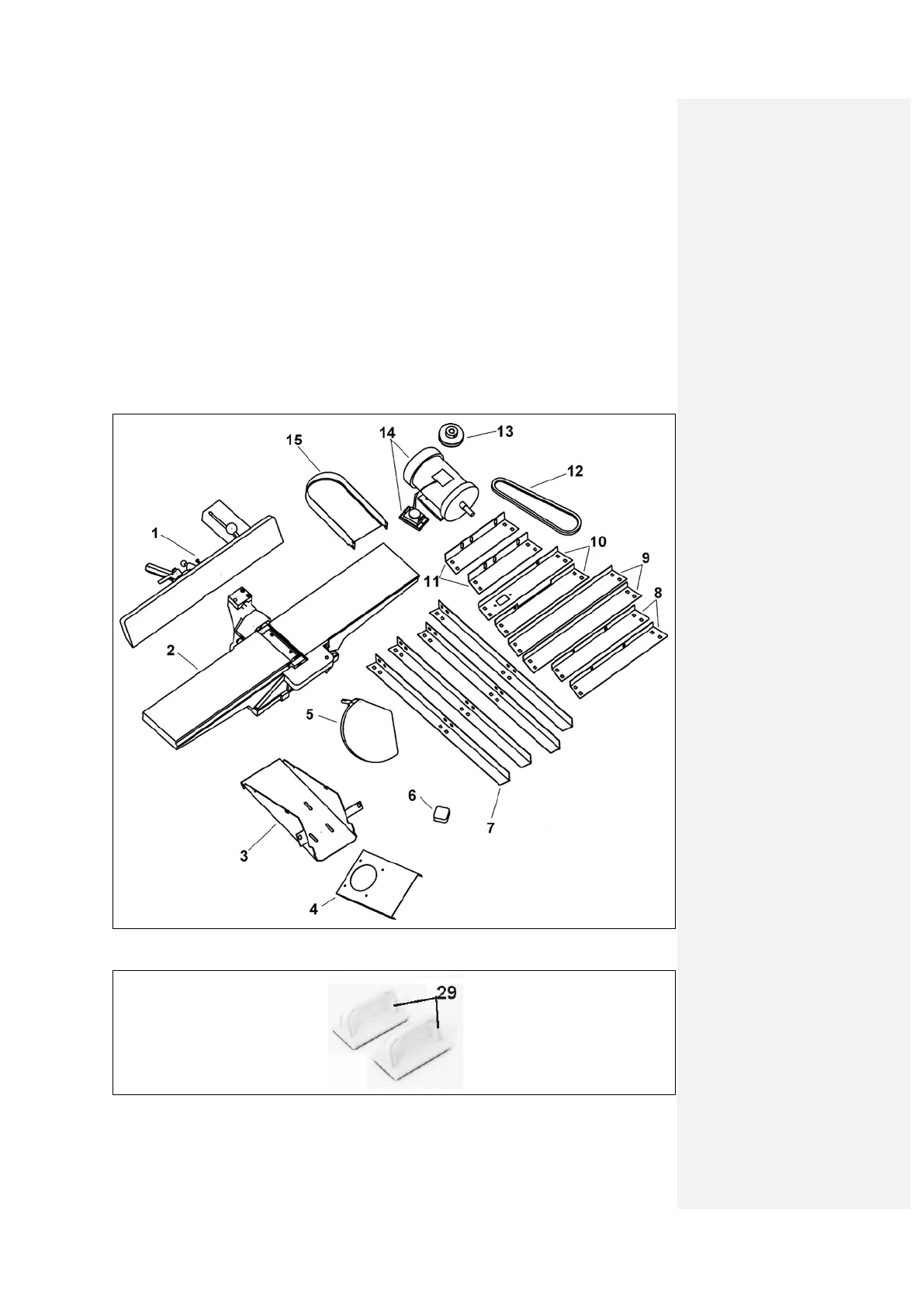

carton. Carefully unpack the jointer and all loose items. Fig.4 and Fig.5, illustrate the
jointer and all loose items supplied with your machine. Remove the protective coating
from the table surface and all unpainted parts. This coating may be removed with a soft
cloth moistened with kerosene (do not use acetone, gasoline or lacquer thinner for this
purpose). After cleaning cover the table surface with a good quality paste wax. Buff out the
wax thoroughly to prevent it from rubbing into the workpieces.
Fig. 4
Fig. 5
