MB502 6” Deluxe Jointer
１２
WARNING: MAKE CERTAIN MOTOR PULLEY IS NOT CONTACTING GUARD.
ASSEMBLING FENCE

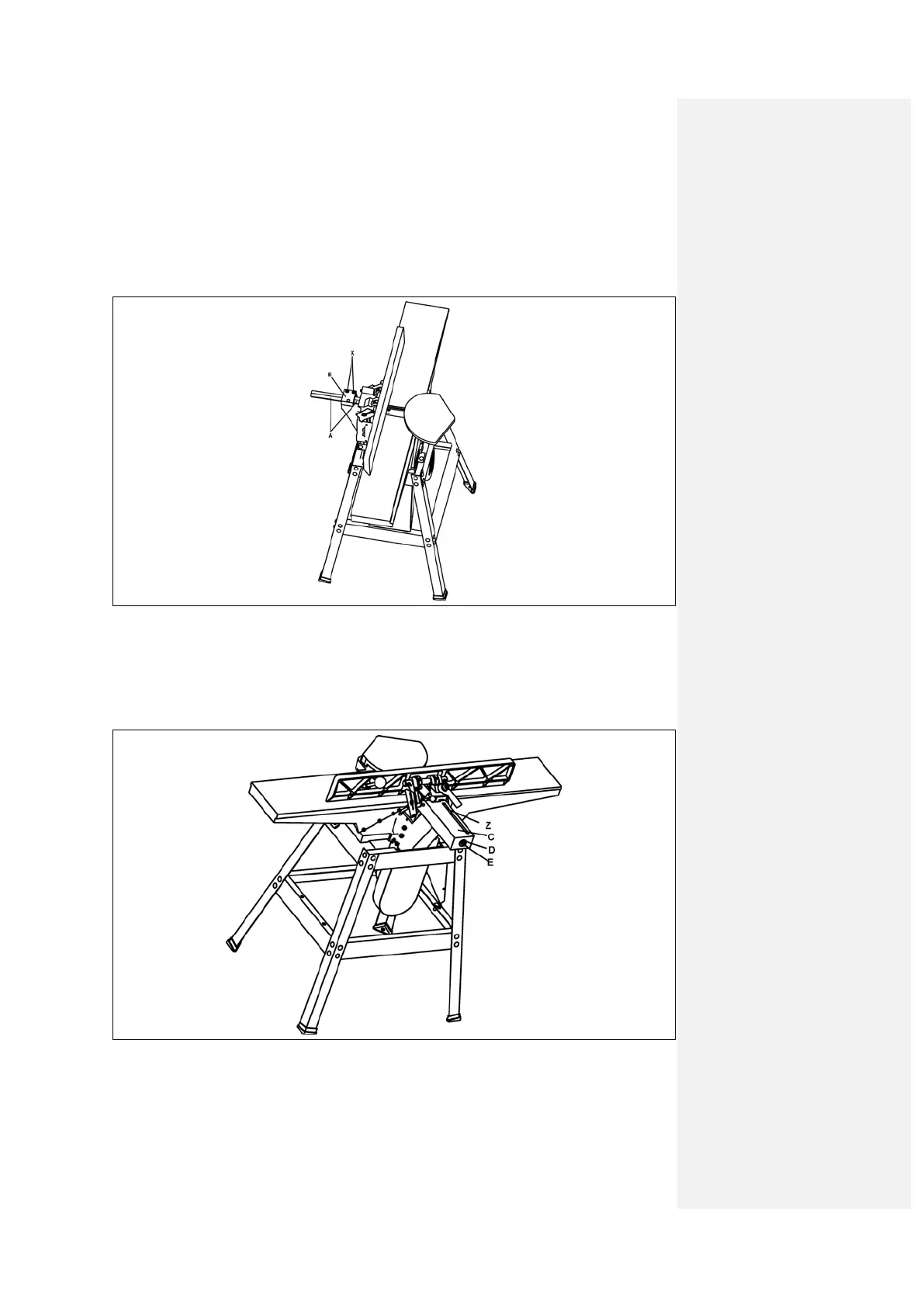

1. Insert hexagon rod (A) Fig. 14, of fence assembly into bracket (B) on jointer as shown.
Fig. 14
NOTE: If fence does not slide in and out easily, loosen two screws (X) Fig. 14, and adjust
bracket (B). Then tighten two screws (X).
2. Assemble rear cutterhead guard (C) Fig. 15, to end of hexagon rod using the 5/8” long
screw (D) and washer (E).
Fig.15
3. Thread fence locking handle assembly (F) Fig. 22, and flat washer (G) into hole (Z)
Fig.21. Lock handle (F) Fig.22, is spring-loaded and can be repositioned by pulling out the
