MB502 6” Deluxe Jointer
８
ASSEMBLING STAND

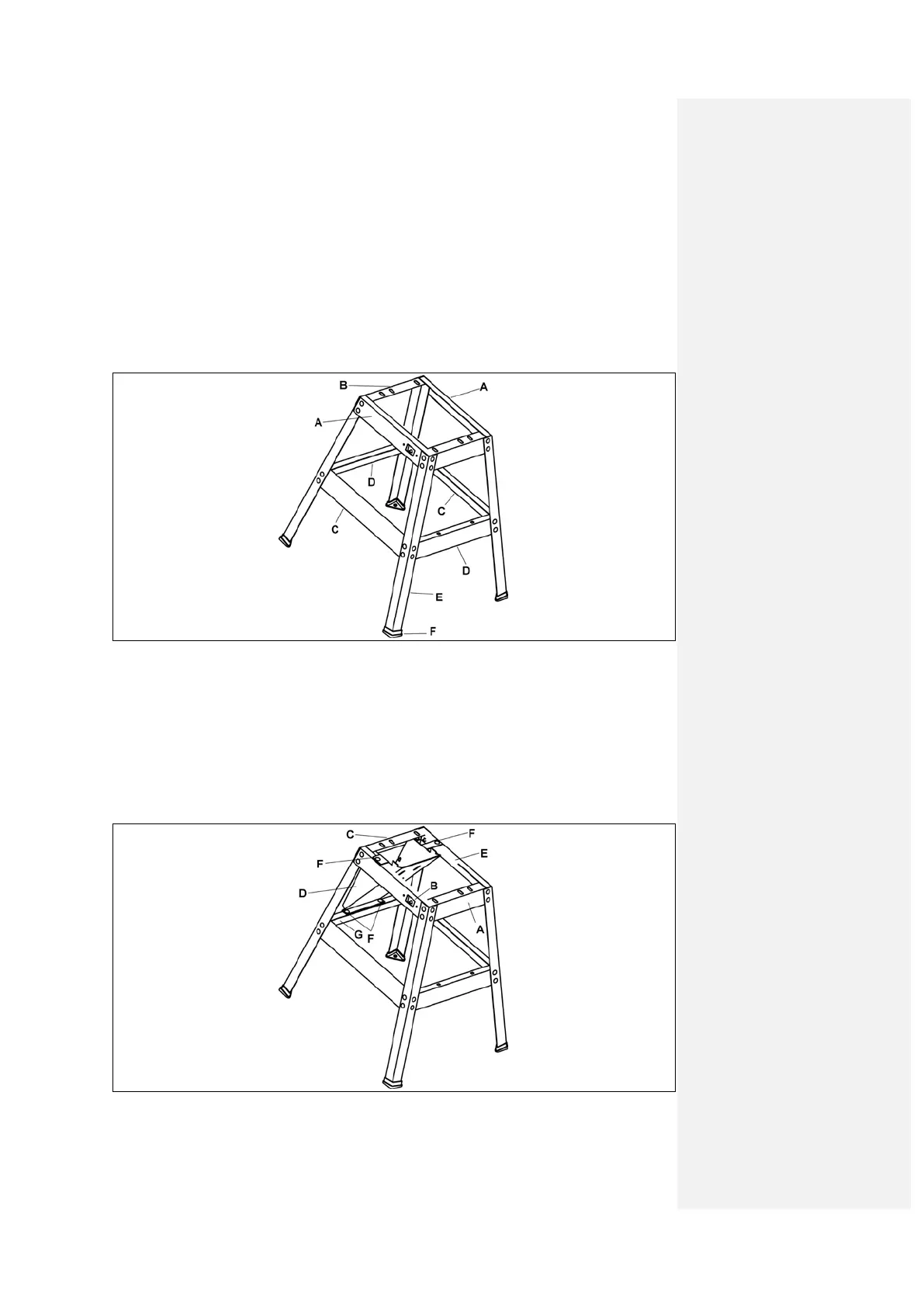

1. Assemble two 11-34” long top end braces (A) Fig. 6, two 15-3/4” long top side braces
(B), two 16-1/2” long lower end braces (C), and two 20-1/2” long side braces (D) to four
legs (E) as shown, using the thirty-two 1/2” long carriage bolts, flat washers, and hex nuts.
Only tighten hex nuts finger tight at this time. IMPORTANT: The top lips of two upper end
braces (A) must fit on top of the top lips of two upper side braces (B).
2. Assemble four rubber feet (F) Fig. 6, to the bottom of each leg (E) as shown.
Fig. 6
ASSEMBLING DUST CHUTE TO STAND
1. The front of the stand is indicated by switch opening (B) Fig. 7, making the outfeed
end of the stand (C) and the infeed end (A).
2. Assemble dust chute (D) Fig. 7, to outfeed end of stand (C) as shown, using four 1/2”
long carriage bolts (F), flat washers, and hex nuts. Only tighten hex nuts finger tight at
this me.
Fig. 7
