2.2 Installing the Hard Disk Drive

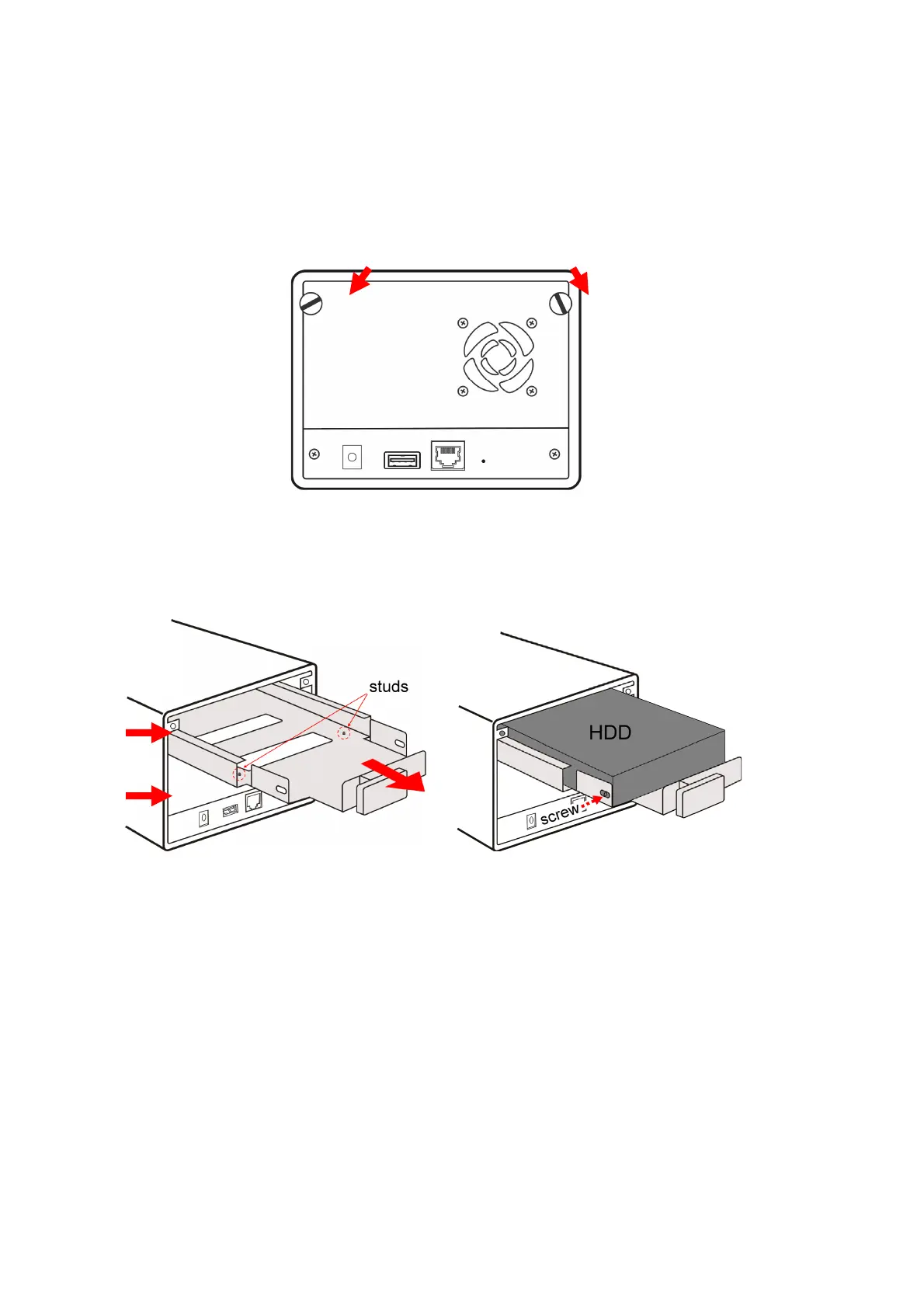

1. Disconnect the power cable of the device.
2. Remove two screws on the rear panel, and then remove the rear panel.
3. Pull the disk tray out until it jammed in the rack.
4. Place the hard disk drive on the tray, and then secured the screws on both side.
HDD 1
HDD 2
NOTE
While placing the hard disk drive onto the tray, align the screw holes on the bottom of hard disk
drive with the studs on the base of tray. The two studs are designed to ensure the hard disk drive
will be installed on the bracket securely.
5. Push the tray into the disk bay all the way until it connects the device.
6. Replace the rear panel and secure two screws.
- 8 -
