6
1.2 Rackmount the Unit
This unit is designed to be mounted on a standard server rack, which occupies 2U
(3.5”) of vertical space.
1. Allow a minimum of 5 cm clearance at the front and the rear for front-to-back
airowoftheunit.
2. Prepare a rack shelf rated for the unit’s weight or purchase the rail kit from
PLANET, and install that to support the entire unit.
3. Secure the unit onto the rack.
1.3 HDD Installation
Make sure this unit is turned off, and insert the hard disks into the disk bays
following the sequence of tray numbers.

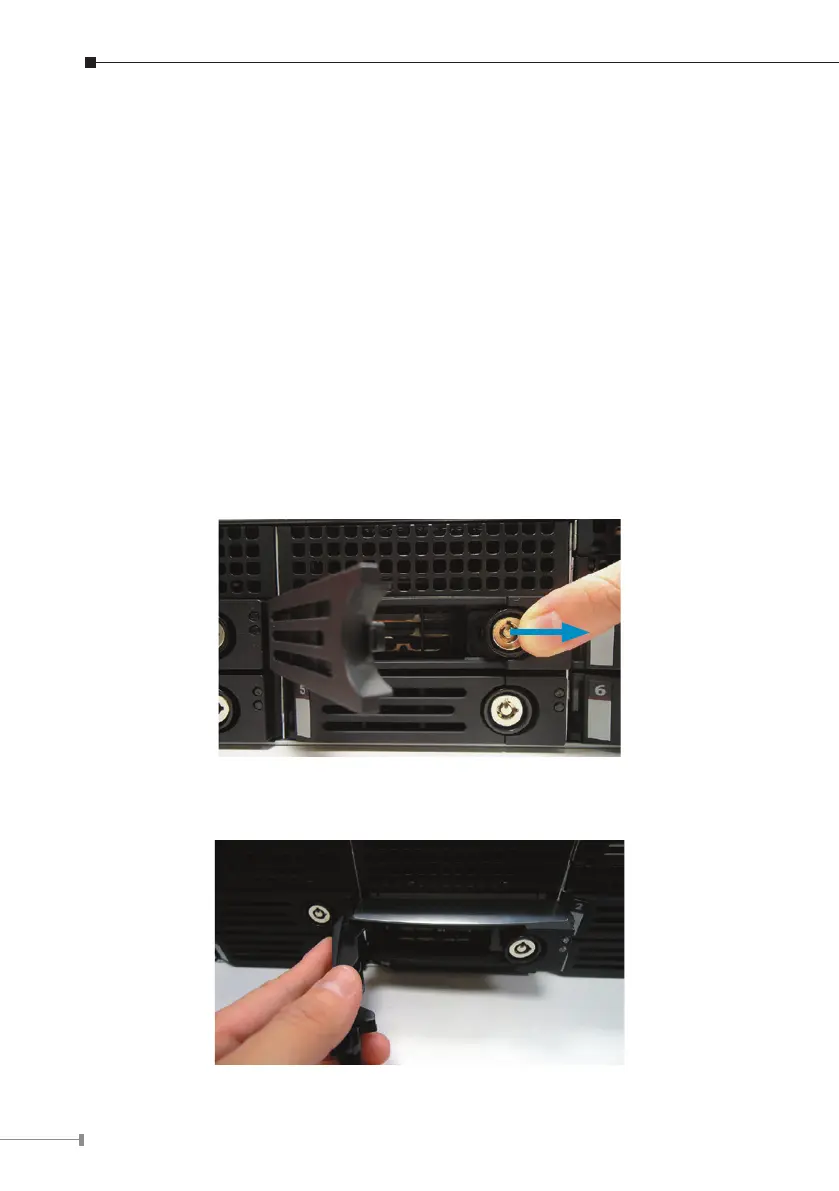

1. Slide the lock tab aside, and the hinge tab will pop out by itself.
2. Hold the tab lever and pull out the tray.
To Next Page
