Planet VF-402-KIT User Manual

7
Fiber Optic Communication for VIDEO and SERIAL DATA
This Video over Fiber Converter kit consists of a Video Transmitter and a Video
Receiver:
VF-402-T: l 4-channel Video over Fiber Transmitter
VF-402-R: l 4-channel Video over Fiber Receiver
Fiber-optic transmission system
This Video over Fiber Converter kit consists of a Video Transmitter, VF-402-T, and a
Video Receiver, VF-402-R (Figure 1).
It is a digital ber-optic transmission system which brings customer a cost-effective
solution for transmission of 4 channel uncompressed digital video and 1 reverse
RS-485 async-data over one single ber cable (Figure 2). It is an adjustment
free device while providing high quality and real-time video transmission. Support
20 KM long distance data rate. The system can be widely used in Intelligent
Transportation Systems (ITS), Trafc Surveillance, security monitoring, automation
control, intelligent residential districts and so on.

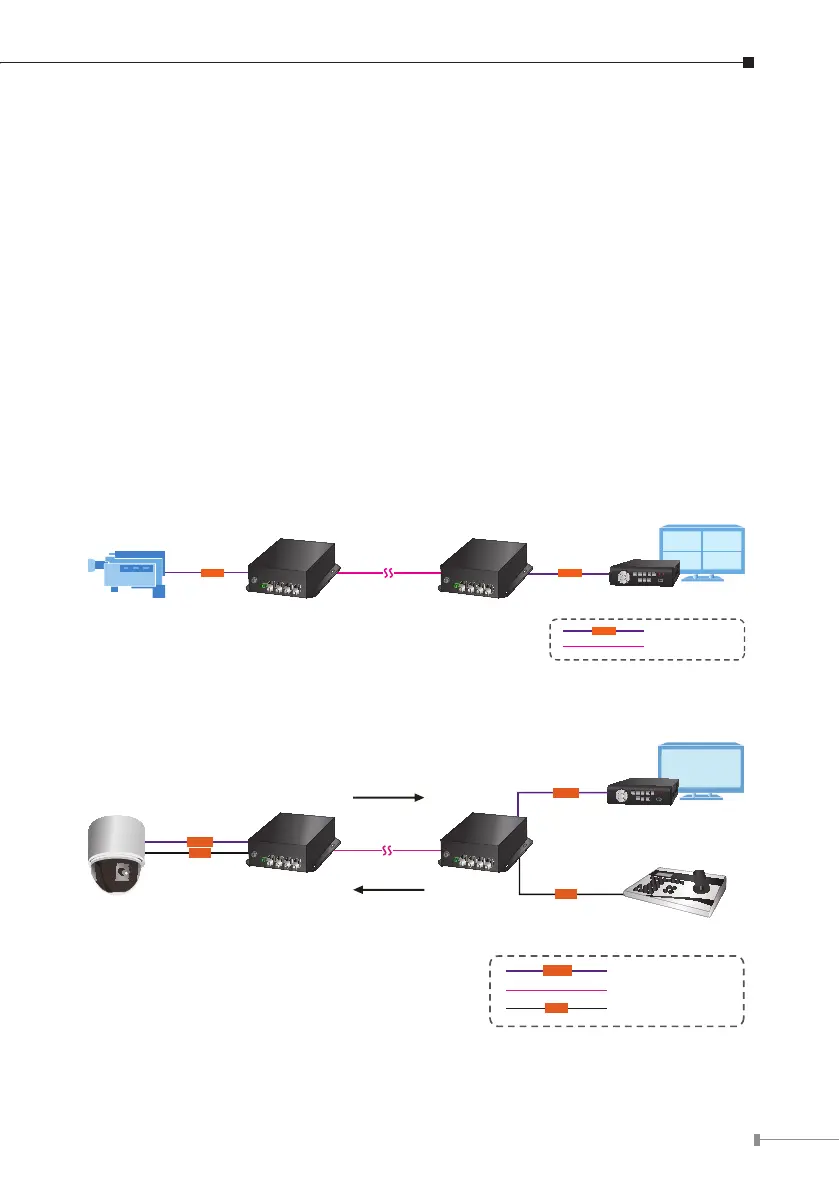

VF-402-T
Transmitter
Analog Camera
VF-402-R
Receiver
DVR / Monitor
Up to 20km
Fiber-optic Wire
Video Line
Video
Video Video
Figure 1 Standard Connection
Speed Dome
DVR / Monitor
Control Keyboard
|O|O|
|O|O|
Up to 20km
VF-402-T
Transmitter
VF-402-R
Receiver
Serial Line (RS-485)
|O|O|
Fiber-optic Wire
Video Line
Video
Video
Video
Data
Video
Figure 2 Data Control
