Planet VF-402-KIT - Hardware Description and Installation; Panel Overview

13
Chapter 2. Hardware Description
2.1 Panel Overview

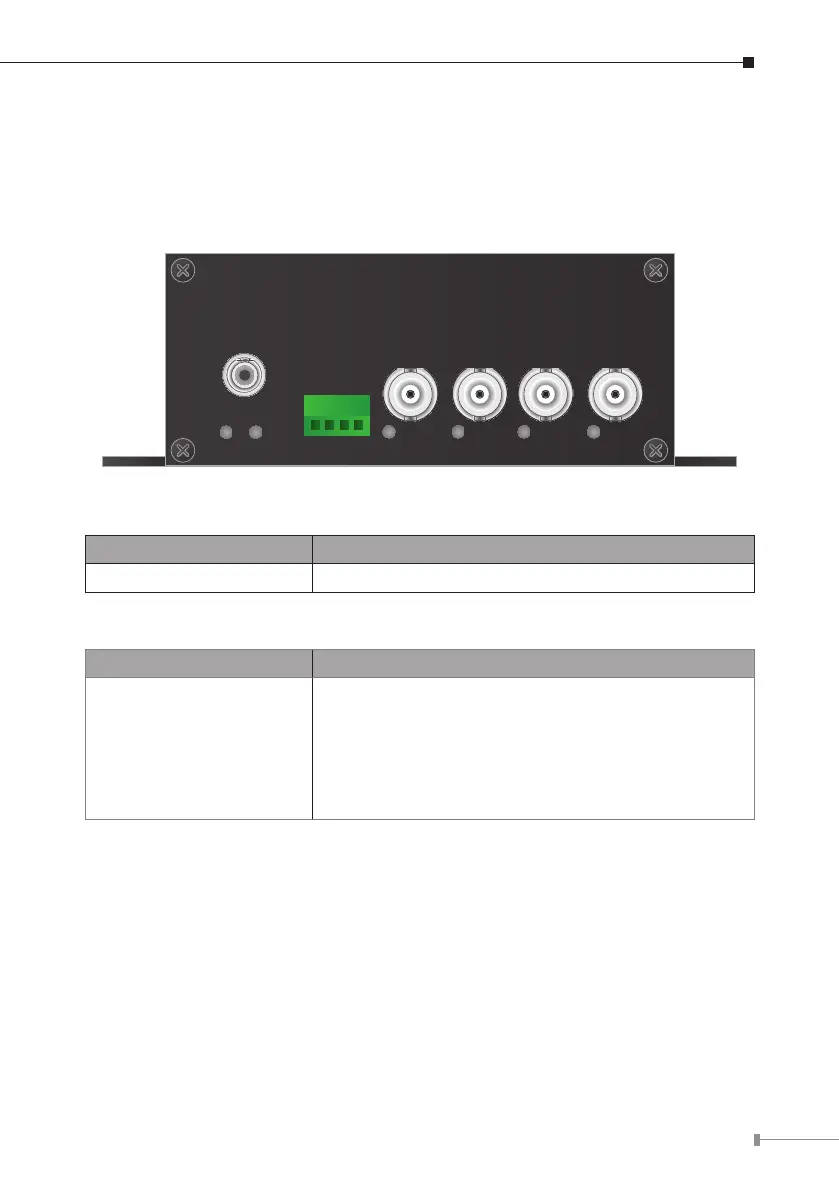

■ Front Panel:
V1
LNKPWR
OPT
P1
V2 V3 V4
■ Video interface
Item Description
VIDEO/V1…V4 Video input interface
■ Fiber interface
Item Description
FIBER/OPT
Fiber interface
(Warning: In case of damage to eyesight, Do not
look directly into interface on electrify state). For
Optical transceiver B type, this interface is empty,
wiring out from the rear panel.
■LEDdenition
PWR: Power indicators. When power on, both PWR in “UP” and “DOWN” are ON.
LNK: Optical link Indicator(After connecting ber, the indicator is green when
optical signal is detected; Unplug ber or no optical detected, light is out.)
V1~V4:
Video indicator (the indicator is green when video signal is detected; light
is out when there is no video signal).
