Planet WNAP-6315 User Manual

User Manual of WNAP-6315
-9-
LED Definition
LED Color State Meaning
Blue On System On
Power
Blue Off System Off
Blue On Wireless Radio On.
Blue Off Wireless Radio Off.
WLAN
Blue Blinking Data is transmitting or receiving on the wireless.
Blue On Port linked.
Blue Off No link.
LAN1
Blue Blinking Data is transmitting or receiving on the LAN interface.
Blue On Port linked.
Blue Off No link.
LAN2 (WAN)
Blue Blinking Data is transmitting or receiving on the WAN interface.
Table 2-1 The LED Indication

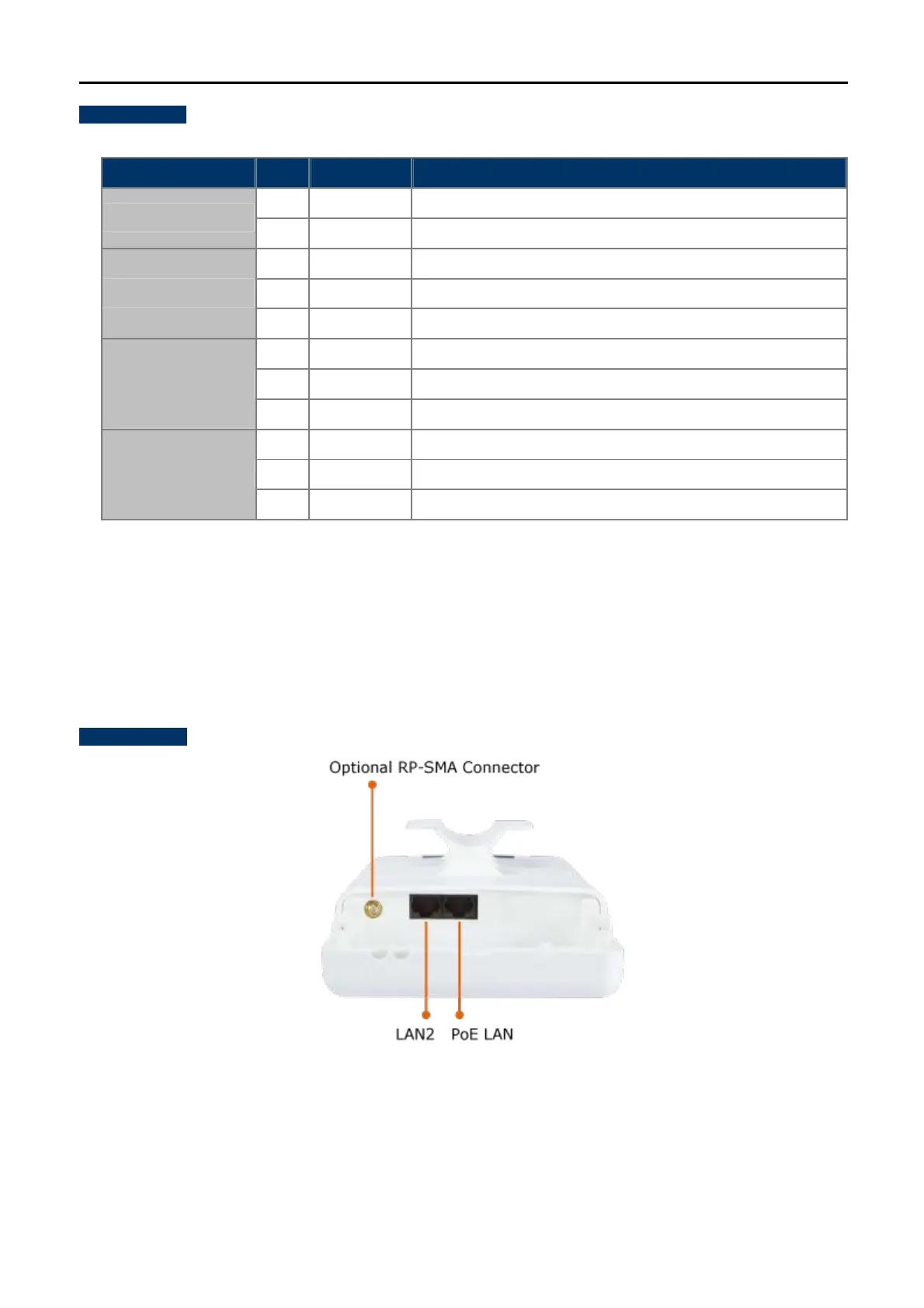

2.1.1 The Bottom Panel – Port
The bottom panel provides the physical connectors connected to the power adapter and any other network
device. Figure 2-3 shows the bottom panel of the WNAP-6315.
Bottom Panel
Figure 2-3 Port and Connector of
WNAP-6315
