User Manual of WNAP-6315
-17-

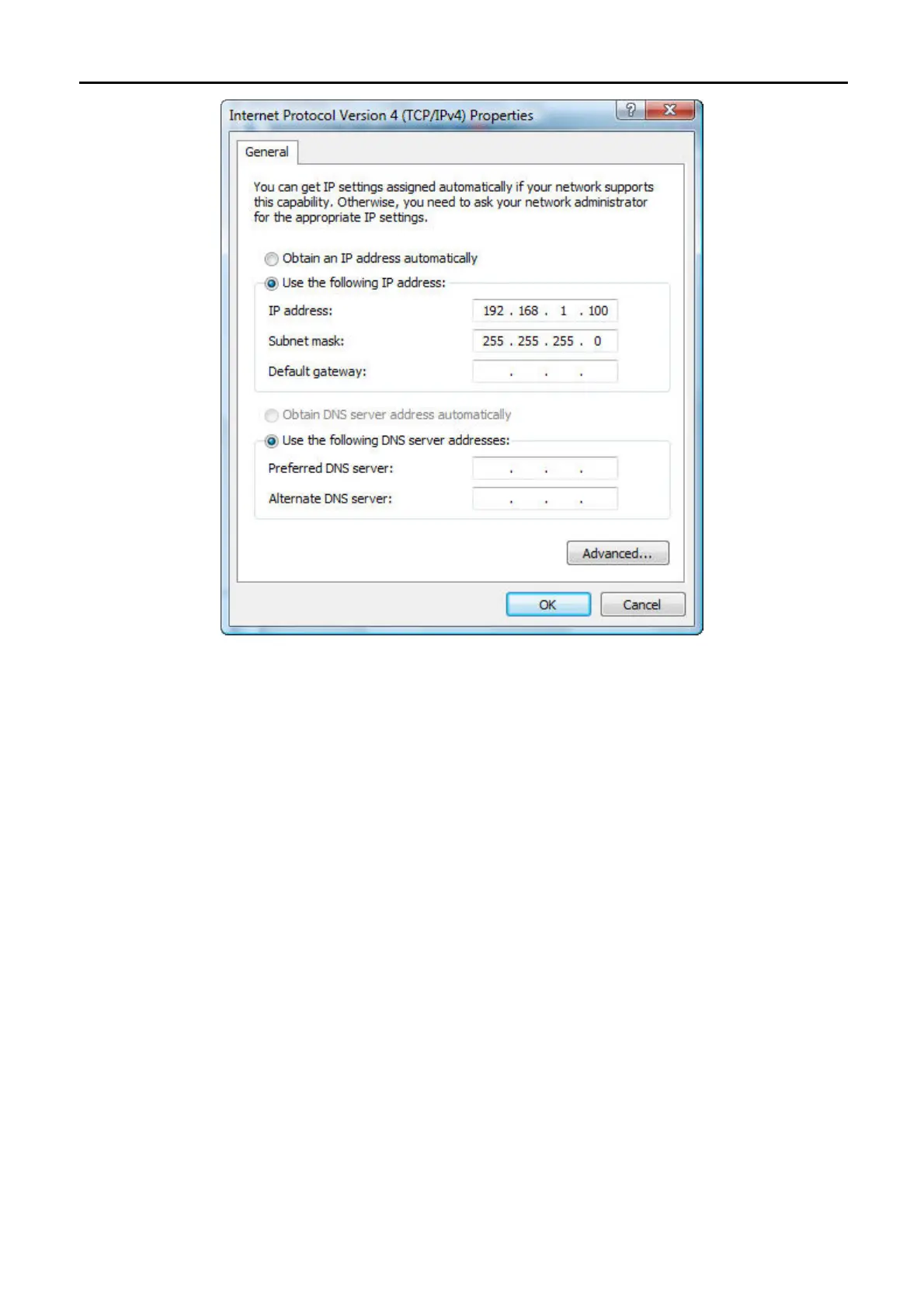

Figure 4-1
TCP/IP Setting
Now click
OK
to save your settings.
Now
, you can run the Ping command in
the
command prompt
to verify the network connection between your
PC and the
AP
. The following example is in
Windows 7
OS. Please follow the steps bel
ow:
1. Click
on
Start
>
R
u
n
.
2. T
ype
“
cmd
” in the Search box.
25
27
Table of Contents
Default Chapter
2
Fcc Caution
2
Federal Communication Commission Interference Statement
2
National Restrictions
3
Table of Contents
5
Chapter 1. Product Introduction
10
Package Contents
10
Product Description
11
Easy Deployment and Management
12
Product Features
13
Product Specifications
14
Chapter 2. Hardware Installation
17
Hardware Description
17
The Bottom Panel - Port
18
Chapter 3. Connecting to the AP
21
Preparation before Installation
21
Professional Installation Required
21
Safety Precautions
21
Installation Precautions
21
Installing the AP
23
Chapter 4. Quick Installation Guide
25
Manual Network Setup - TCP/IP Configuration
25
Configuring the IP Address Manually
25
Starting Setup in the Web UI
29
Chapter 5. Configuring the AP
30
Setup Wizard
30
Operation Mode
35
TCP/IP Settings
37
LAN Interface
37
WAN Interface
38
Wireless
43
Basic Settings
43
Advanced Settings
61
Security
63
Access Control
71
Wds
73
Site Survey
76
Wps
76
Schedule
80
Firewall
81
Port Filtering
81
IP Filtering
82
MAC Filtering
83
Port Forwarding
84
URL Filtering
85
Dmz
86
Qos
86
Management
88
Status
88
Statistics
89
DDNS (Dynamic DNS Settings)
90
Time Zone Setting
95
Schedule Reboot
97
Denial of Service (Dos)
98
Log
100
Upgrade Firmware
101
Save/Load Setting
101
Password
103
Logout
104
Chapter 6. Quick Connection to a Wireless Network
105
Windows XP (Wireless Zero Configuration)
105
Windows 7 (WLAN Autoconfig)
107
Mac os X 10.X
110
Iphone / Ipod Touch / Ipad
114
Appendix A: Planet Smart Discovery Utility
117
Appendix B: Troubleshooting
118
Appendix C: Frequently Asked Questions
120
Q1: How to Set up the AP Client Connection
120
Q2: How to Setup the WDS Connection
128
