Plessey PRC 320/1 - Technical Data

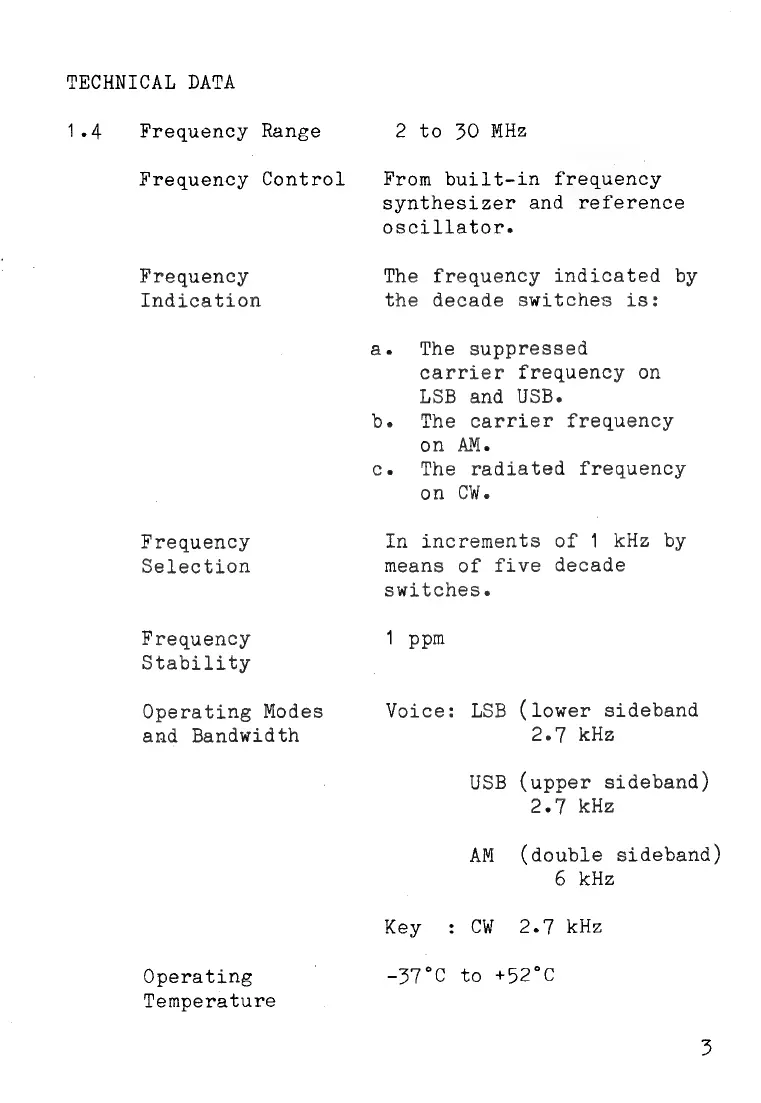

TECHNICAL DATA
1.4 Frequency Range
Frequency Control
Frequency
Indication
Frequency
Selection
Frequency
Stability
Operating Modes
and Bandwidth
Operating
Temperature
2 to 50 MHz
From built-in frequency
synthesizer and reference
oscillator.
The frequency indicated by
the decade switches is:
a. Тһе suppressed
carrier frequency on
LSB and USB.
b. The carrier frequency
on AM.
с. Тһе radiated frequency
on CW.
In increments of 1 kHz by
means of five decade
switches.
1 ppm
Voice: LSB (lower sideband
2.7 kHz
USB (upper sideband)
2.7 kHz
AM (double sideband)
6 kHz
Key : CW 2.7 kHz
=37°C to +52°С
