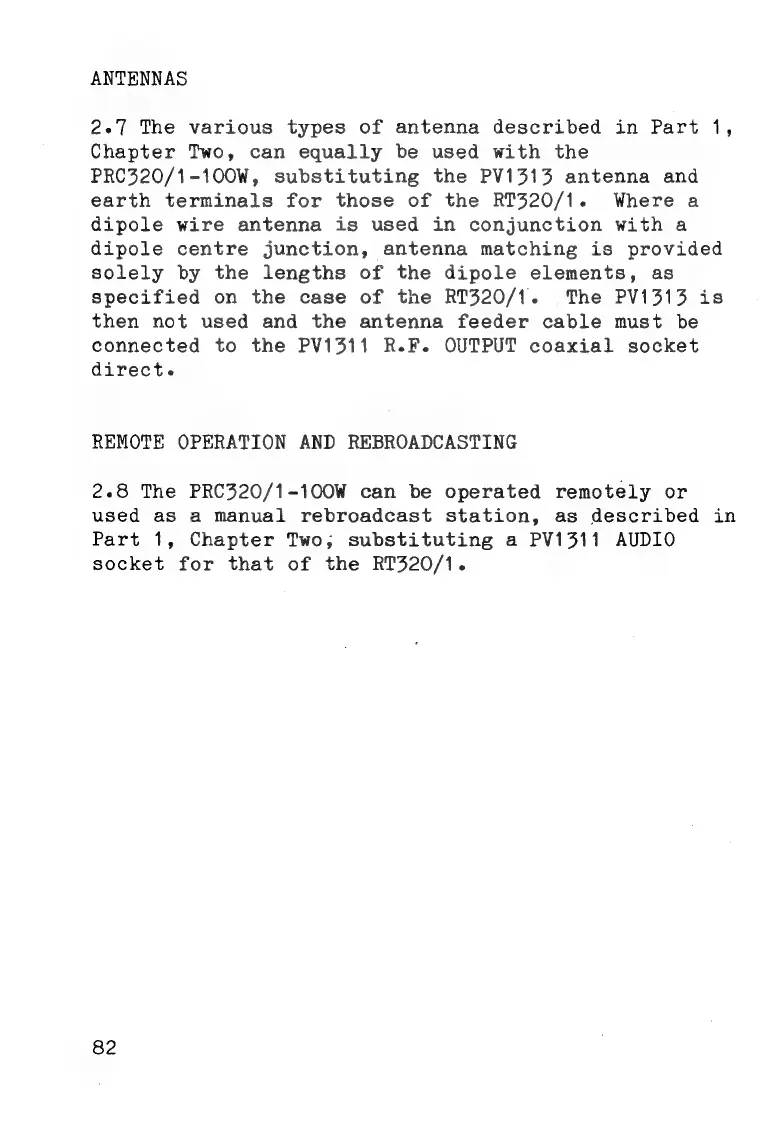

ANTENNAS

2.7

The

various

types

of

antenna

described

in

Part

1,

Chapter

Two,

can

equally

be

used

with

the

PRC320/1-100W,

substituting

the

PV1515

antenna

and

earth

terminals

for

those

of

the

RT220/1.

Where

a

dipole

wire

antenna

is

used

in

conjunction

with

a

dipole

centre

junction,

antenna

matching

is

provided

Solely

by

the

lengths

of

the

dipole

elements,

as

specified

on

the

case

of

the

RT320/1.

Тһе

PV1515

is

then

not

used

and

the

antenna

feeder

cable

must

be

connected

to

the

PV1511

R.F.

OUTPUT

coaxial

socket

direct.

REMOTE

OPERATION

AND

REBROADCASTING

2.8

The

PRC320/1-100W

сап

be

operated

remotely

or

used

as

a

manual

rebroadcast

station,

as

described

in

Part

1,

Chapter

Two,

substituting

a

PV1511

AUDIO

socket

for

that

of

the

RT320/1.
