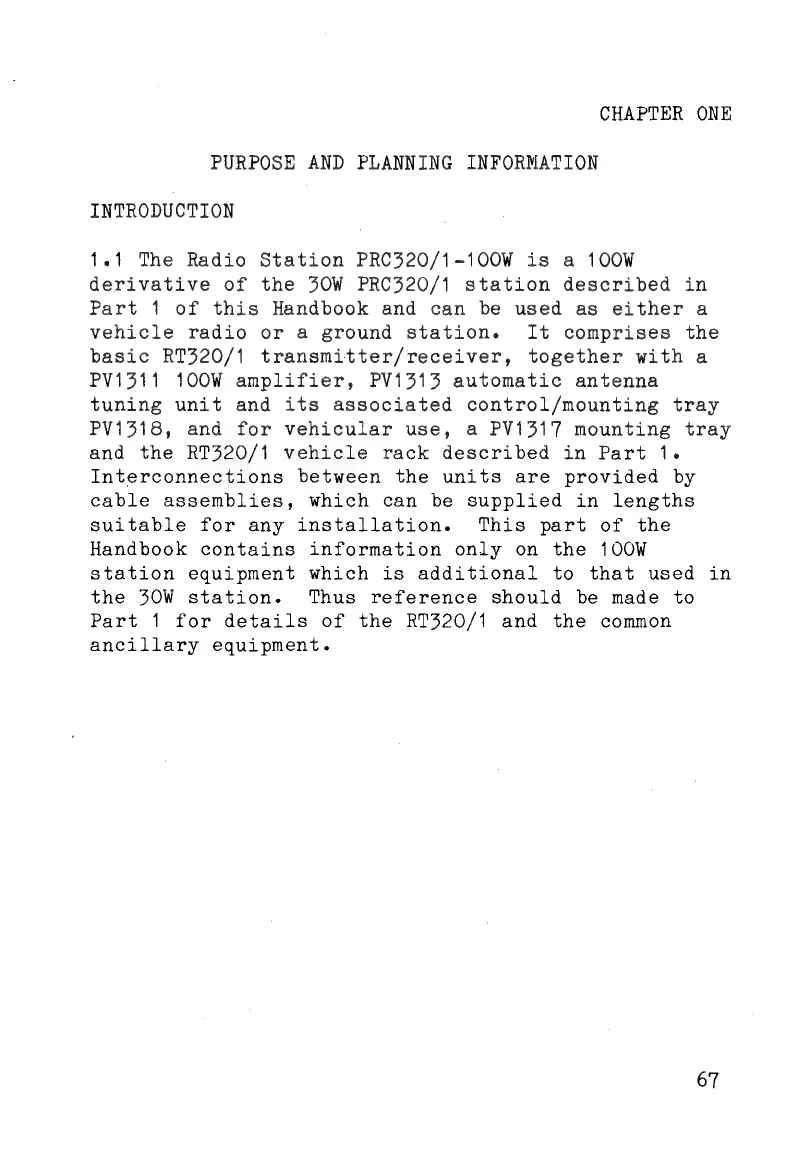

CHAPTER

ONE

PURPOSE

AND

PLANNING

INFORMATION

INTRODUCTION

1.1

The

Radio

Station

PRC320/1-100W

is

a

100W

derivative

of

the

30W

PRC320/1

station

described

in

Part

1

of

this

Handbook

and

can

be

used

as

either

a

vehicle

radio

or

a

ground

station.

It

comprises

the

basic

RT320/1

transmitter/receiver,

together

with

a

PV1311

100W

amplifier,

PV1313

automatic

antenna

tuning

unit

and

its

associated

control/mounting

tray

PV1518,

and

for

vehicular

use,

a

РУ1517

mounting

tray

and

the

КТ520/1

vehicle

rack

described

in

Part

1.

Interconnections

between

the

units

are

provided

by

cable

assemblies,

which

can

be

supplied

in

lengths

Suitable

for

any

installation.

This

part

of

the

Handbook

contains

information

only

on

the

100W

station

equipment

which

is

additional

to

that

used

in

the

50W

station.

Thus

reference

should

be

made

to

Part

1

for

details

of

the

RT320/1

and

the

common

ancillary

equipment.
