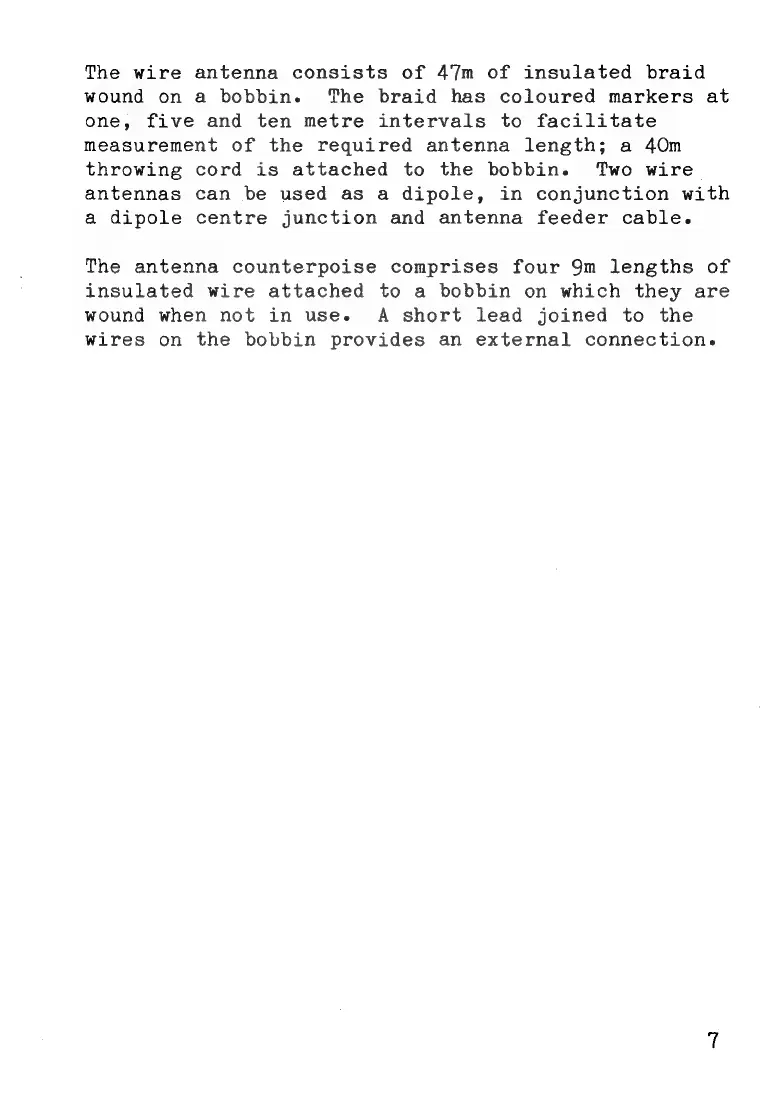

The

wire

antenna

consists

of

47m

of

insulated

braid

wound

on

a

bobbin.

The

braid

has

coloured

markers

at

one,

five

and ten

metre

intervals

to

facilitate

measurement

of

the

required

antenna

length;

a

40m

throwing

cord

is

attached

to

the

bobbin.

Two

wire

antennas

can

be

used

as

a

dipole,

in

conjunction

with

a

dipole

centre

junction

and

antenna

feeder

cable.

The

antenna

counterpoise

comprises

four

9m

lengths

of

insulated

wire

attached

to

a

bobbin

on

which

they

are

wound

when

not

in

use.

А

short

lead

joined

to

the

wires

on

the

bobbin

provides

an

external

connection.
