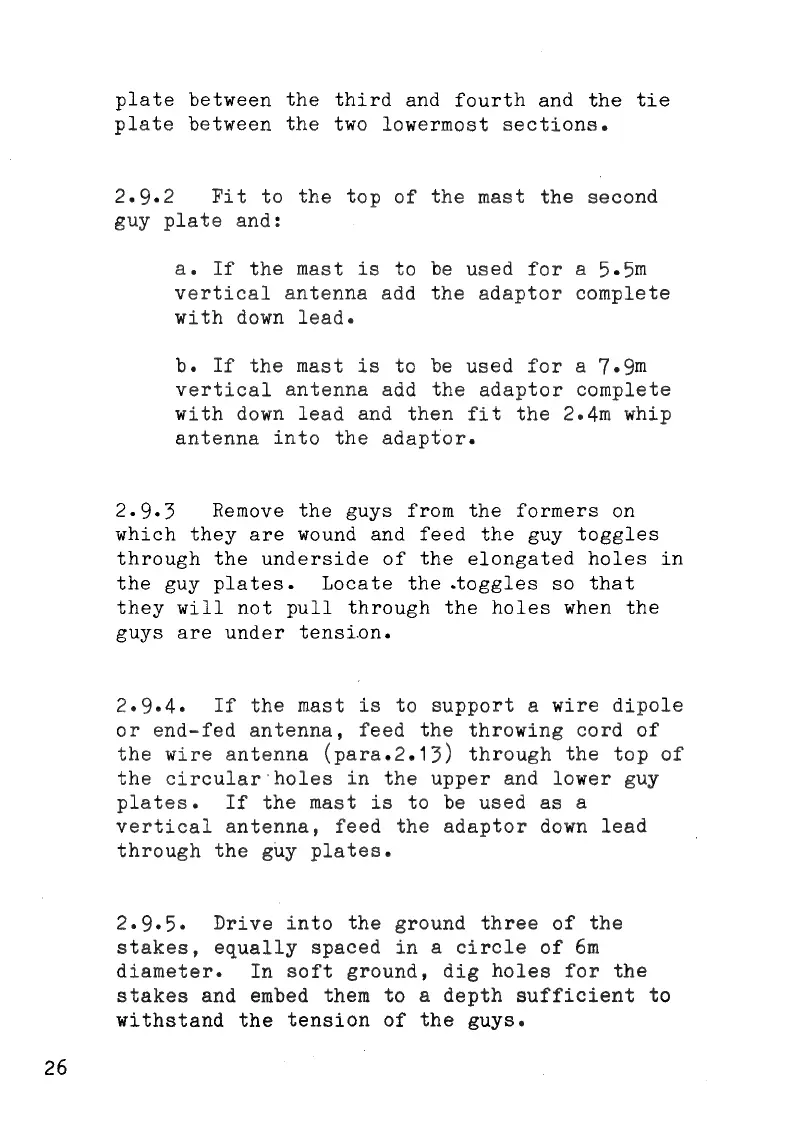

26

plate

between

the

third

and

fourth

and

the tie

plate

between

the

two

lowermost

sections.

2.9.2

Fit

to

the

top

of

the

mast

the

second

guy

plate

and:

a.

If

the

mast

is

to

be

used

for

a

5.5m

vertical

antenna

add

the

adaptor

complete

with

down

lead.

b.

If

the

mast

is

to

be

used

for

a

7.9п

vertical

antenna

add

the

adaptor

complete

with

down

lead

and

then

fit

the

2.4m

whip

antenna

into

the

adaptor.

2.9.5

Remove

the

guys

from

the

formers

on

which

they

are

wound

and

feed

the

guy

toggles

through

the

underside

of

the

elongated

holes

in

the

guy

plates.

Locate

the

.toggles

so

that

they

will

not

pull

through

the

holes

when

the

guys

are

under

tension.

2.9.4.

If

the

mast

is

to

support

a

wire

dipole

or

end-fed

antenna,

feed

the

throwing

cord

of

the

wire

antenna

(para.2.15)

through

the

top

of

the

circular'

holes

in

the

upper

and

lower

guy

plates.

If

the

mast

is

to

be

used

as

a

vertical

antenna,

feed

the

adaptor

down

lead

through

the

guy

plates.

2.9.5.

Drive

into

the

ground

three

of

the

stakes,

equally

spaced

in

а

circle

of

6m

diameter.

Іп

soft

ground,

dig

holes

for

the

Stakes

and

embed

them

to

а

depth

sufficient

to

withstand

the

tension

of

the

guys.
