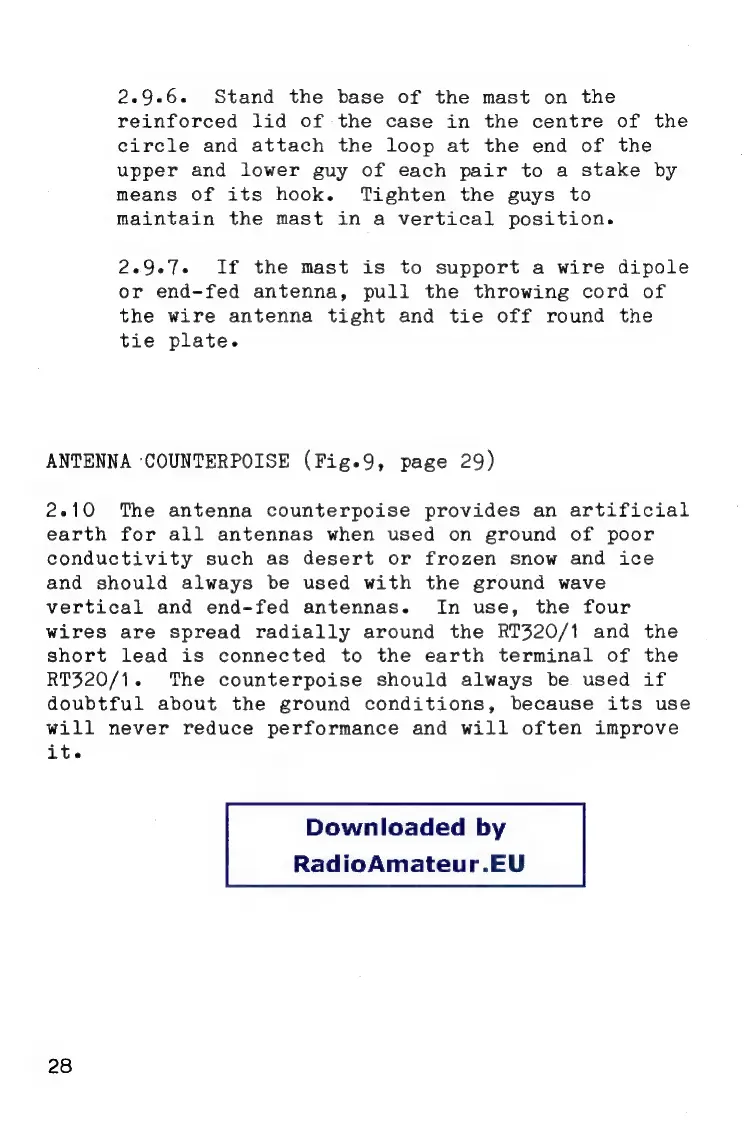

2.9.6.

Stand

the

base

of

the

mast

on

the

reinforced

lid

of

the

case

in

the

centre

of

the

circle

and

attach

the

loop

at

the

end

of

the

upper

and

lower

guy

of

each

pair

to

a

stake

by

means

of

its

hook.

Tighten

the

guys

to

maintain

the

mast

in

a

vertical

position.

2.9.7.

ТЕ

the

mast

is

to

support

а

wire

dipole

or

end-fed

antenna,

pull

the

throwing

cord

of

the

wire

antenna

tight

and

tie

off

round

the

tie

plate.

ANTENNA

‘COUNTERPOISE

(Fig.9,

page

29)

2.10

The

antenna

counterpoise

provides

an

artificial

earth

for

all

antennas

when used

on

ground

of

poor

conductivity

such

as

desert

or

frozen

snow

and

ice

and

should

always

be

used

with

the

ground

wave

vertical

and

end-fed

antennas.

Іп

use,

the

four

wires

are

spread

radially

around

the

RT320/1

and

the

Short

lead

is

connected

to

the

earth

terminal

of

the

RT320/1.

Тһе

counterpoise

should

always

be

used

if

doubtful

about

the

ground

conditions,

because

its

use

will

never

reduce

performance

and

will

often

improve

it.
