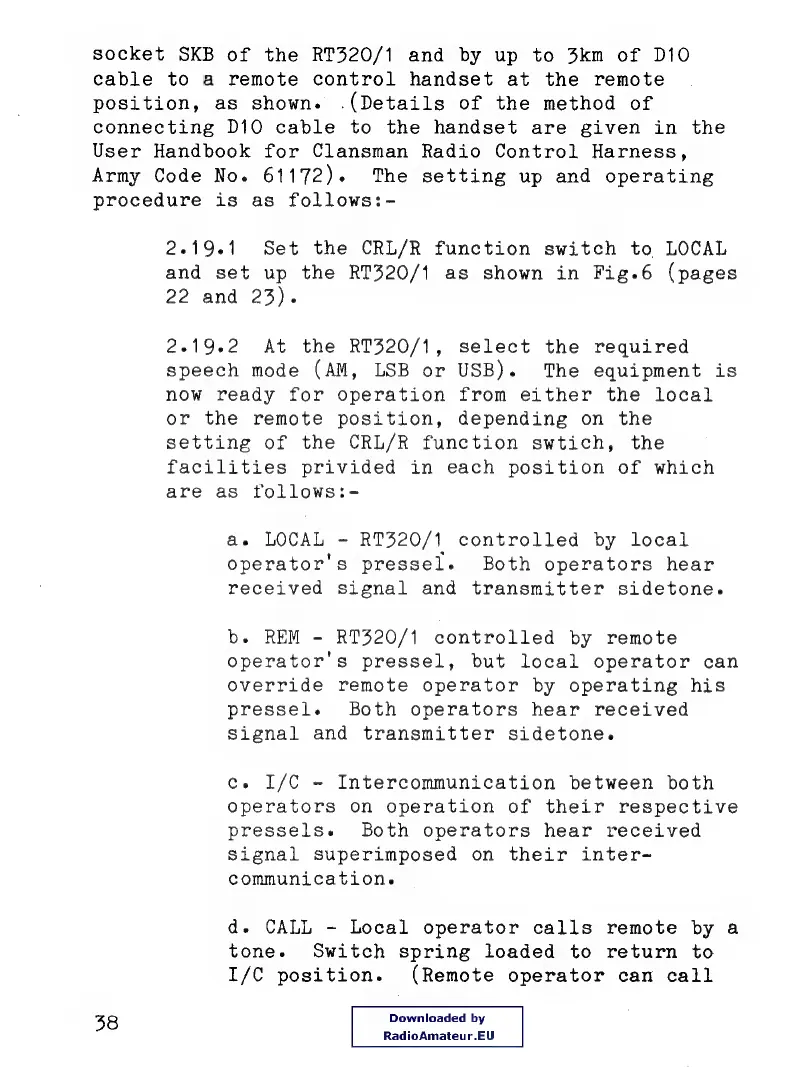

socket

SKB

of

the

RT320/1

and

by

up

to

3km

of

110

cable

to

a

remote

control

handset

at

the

remote

position,

as

shown.

.(Details

of

the

method

of

connecting

010

cable

to

the

handset

are

given

in

the

User

Handbook

for

Clansman

Radio

Control

Harness,

Army

Code

No.

61172).

The

setting

up

and

operating

procedure

is

as

follows:-

58

2.19.1

Set

the

CRL/R

function

switch

to

LOCAL

and

set

up

the

RT320/1

as

shown

in

Fig.6

(pages

22

and

23).

2.19.2

At

the

RT320/1,

select

the

required

speech

mode

(AM,

LSB

or

USB).

The

equipment

is

now

ready

for

operation

from

either

the

local

or

the

remote

position,

depending

on

the

setting

of

the

CRL/R

function

swtich,

the

facilities

privided

in

each

position

of

which

are

as

follows:-

a.

LOCAL

~-

RT320/1

controlled

by

local

operator's

pressel.

Both

operators

hear

received

signal

and

transmitter

sidetone.

b.

REM

-

RT320/1

controlled

by

remote

operator's

pressel,

but

local

operator

can

override

remote

operator

by

operating

his

pressel.

Both

operators

hear

received

Signal

and

transmitter

sidetone.

c.

I/C

-

Intercommunication

between

both

operators

on

operation

of

their

respective

pressels.

Both

operators

hear

received

Signal

superimposed

on

their

inter-

communication.

d.

CALL

-

Local

operator

calls

remote

by

а

tone.

Switch

spring

loaded

to

return

to

Т/С

position.

(Remote

operator

can

call
