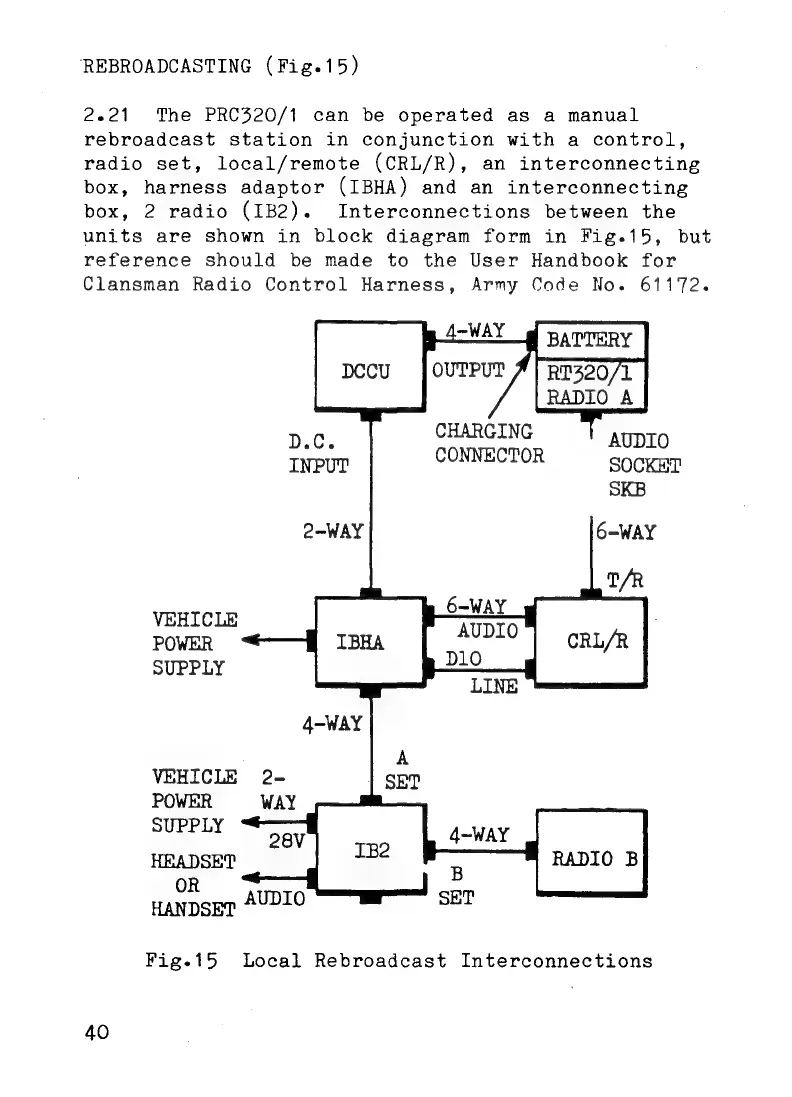

'"REBROADCASTING (Fig.15)
2.21 Тһе PRC320/1 сап be operated as а manual
rebroadcast station in conjunction with a control,
radio set, local/remote (CRL/R), an interconnecting
box, harness adaptor (IBHA) and an interconnecting
box, 2 radio (IB2). Interconnections between the
units are shown in block diagram form in Fig.15, but
reference should be made to the User Handbook for
Clansman Radio Control Harness, Army Code No. 61172.
RT320/1
RADIO A
CHARGING
P CONNECTOR
INPUT
VEHICLE
POWER *
SUPPLY
4-WAY
VEHICLE 2-
SET
Fig-.15 Local Rebroadcast Interconnections
